AF-N
AF-N is solid shaft type compact actuator that is directly mounted with a servomotor. It is designed to be highly accurate, rigid, and reliable, and it is a successor to the Precision Reduction Gear RV. The AF series allows for a reduction in the design and assembly of gears and motors for customers.

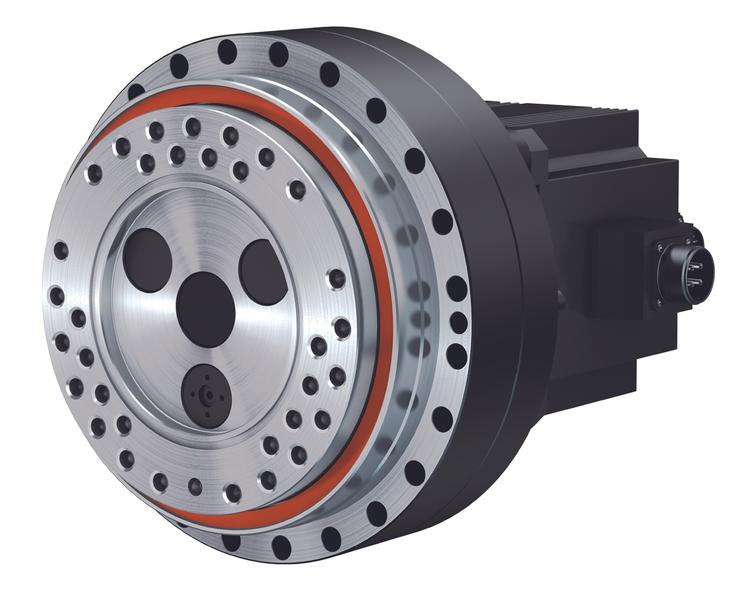

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Standard Ratio | 81 | 1525/7 |
| Rated capacity | 0.4 kW | 4 kW |
| Rated Torque | 82 Nm | 3329 Nm |
| Rated Output speed | 7.9 rpm | 21.5 rpm |
| Allowable Thrust load | 2610 N | 25000 N |
| Backlash | - | 1 arc.min |
Variant Applications
| Machines / Applications |
|---|
| Palletizing robot |
| Index table |
| Stacker crane |
| Pipe bending |
| Gantry loader |
| ATC magazine |
| SCARA robot |
| Cylindrical coordinate robot |
| Industries |
|---|
| Automation |
| Tyre |
| Aviation |
AF-N
AF-N is solid shaft type compact actuator that is directly mounted with a servomotor. It is designed to be highly accurate, rigid, and reliable, and it is a successor to the Precision Reduction Gear RV. The AF series allows for a reduction in the design and assembly of gears and motors for customers.

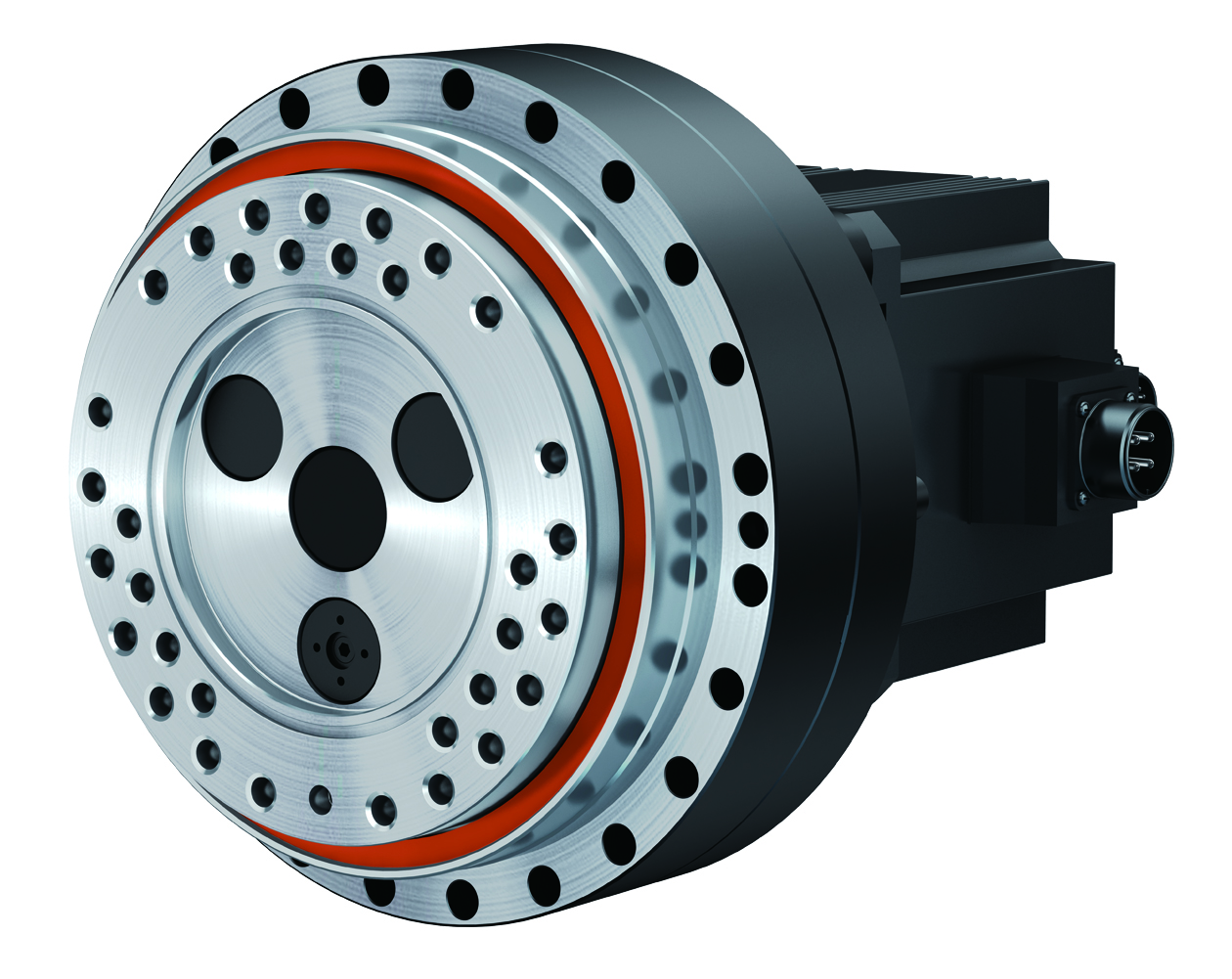

Variant Image
