Series HDP18
Series HDP18 is a shaft-less encoder available with incremental, analog and absolute outputs. It features non contact magnetic sensing.

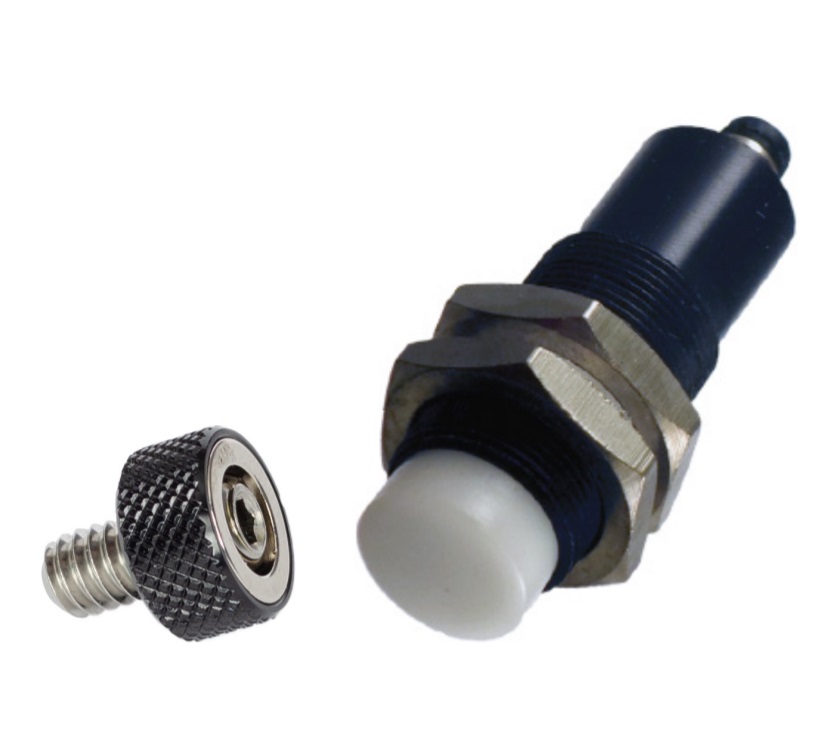

Variant Image

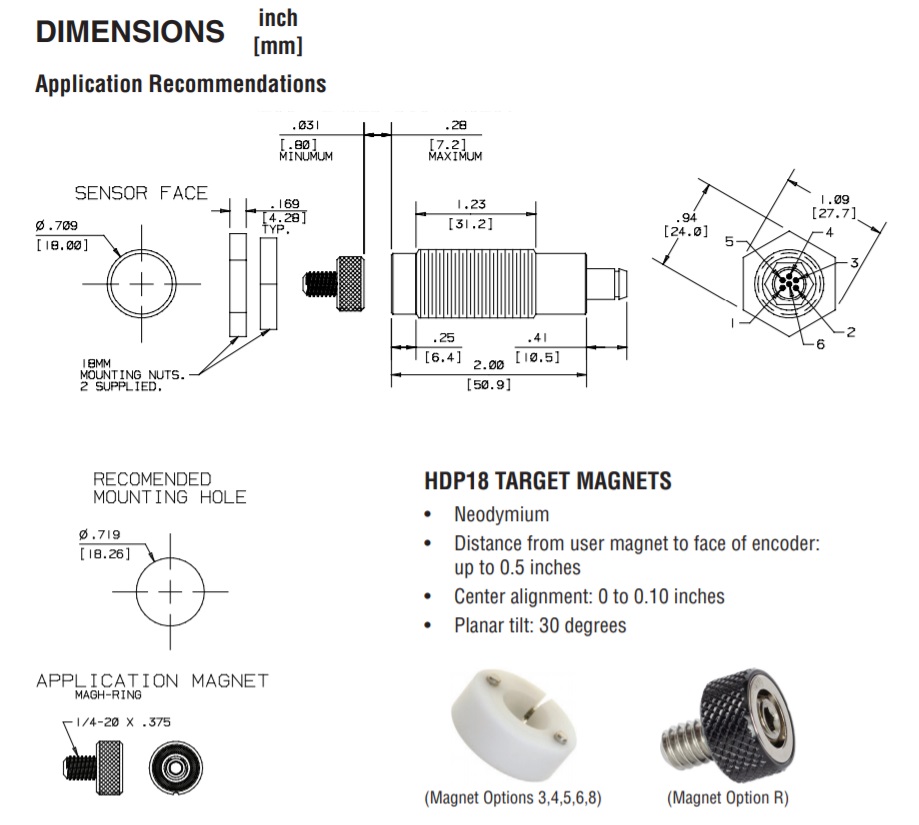

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/2 inch | 1-1/2 inch |
| Input Voltage | 6 VDC | 30 VDC |
| Revolutions | 256 PPR | - |
| Temperature | -25 °C | 80 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
