SLIM TACH RL67
Series SLIM TACH RL67 is a bearingless encoder with anodized aluminium housing with field serviceable connector. The design with Magneto-Resistive technology protects from dirt, oil, dust and water etc.

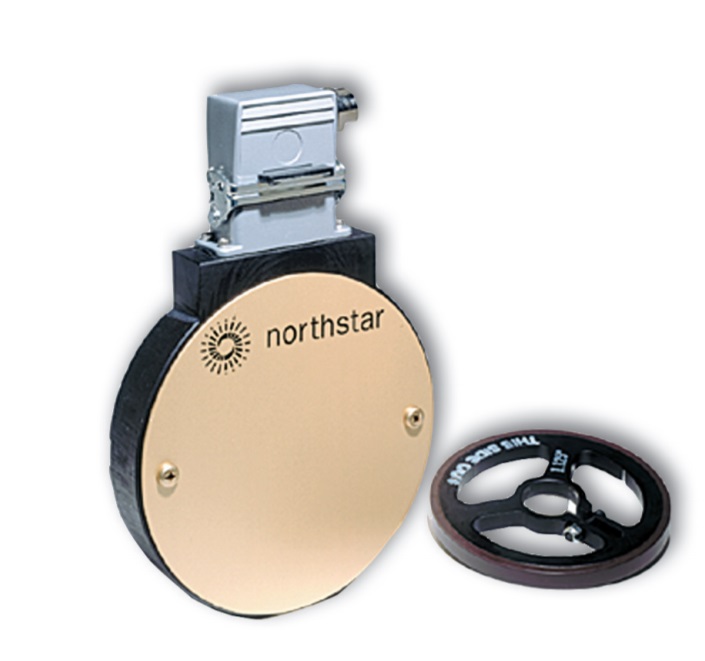

Variant Image

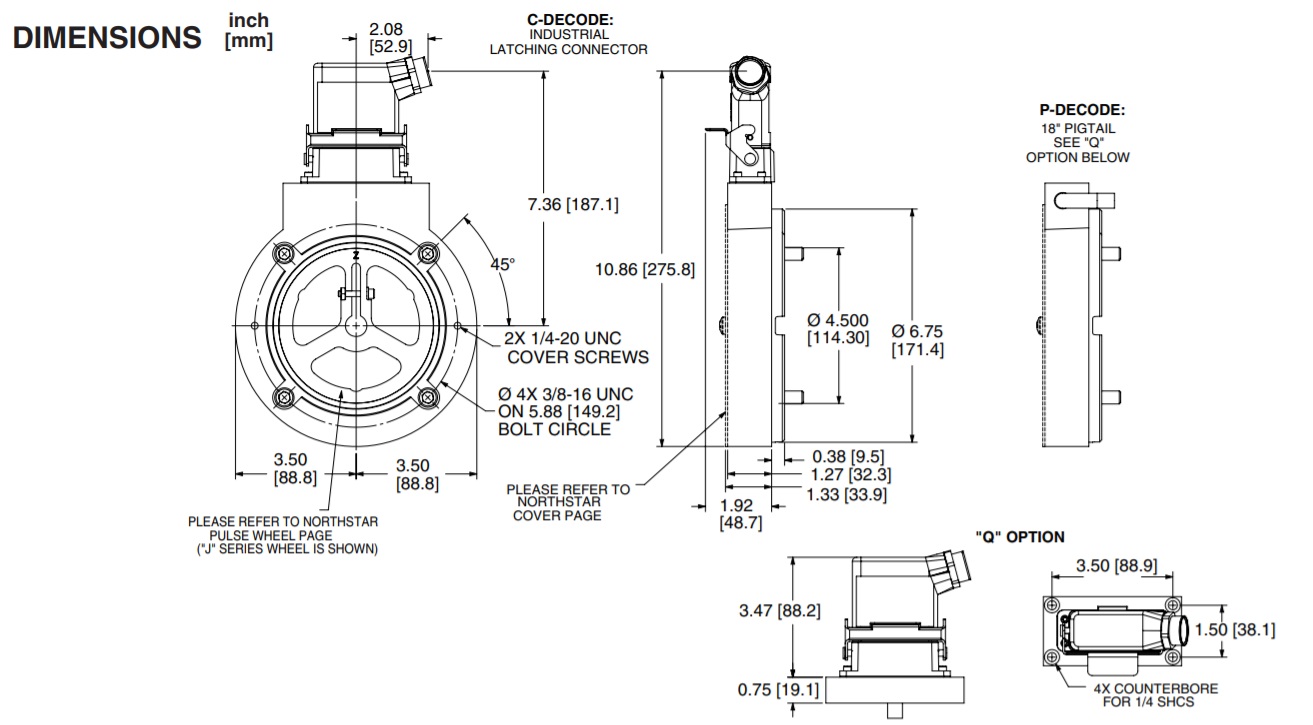

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 5/8 inch | 2-7/8 inch |
| Input Voltage | 5 VDC | 26 VDC |
| Revolutions | 64 PPR | 1024 PPR |
| Temperature | -40 °C | 90 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
