Series HSD38
Series HSD38 is a harsh duty optical encoder with unbreakable code disc upto 5000 PPR. It has dual sealed housing. It has thermally and electrically isolated hollow shaft.

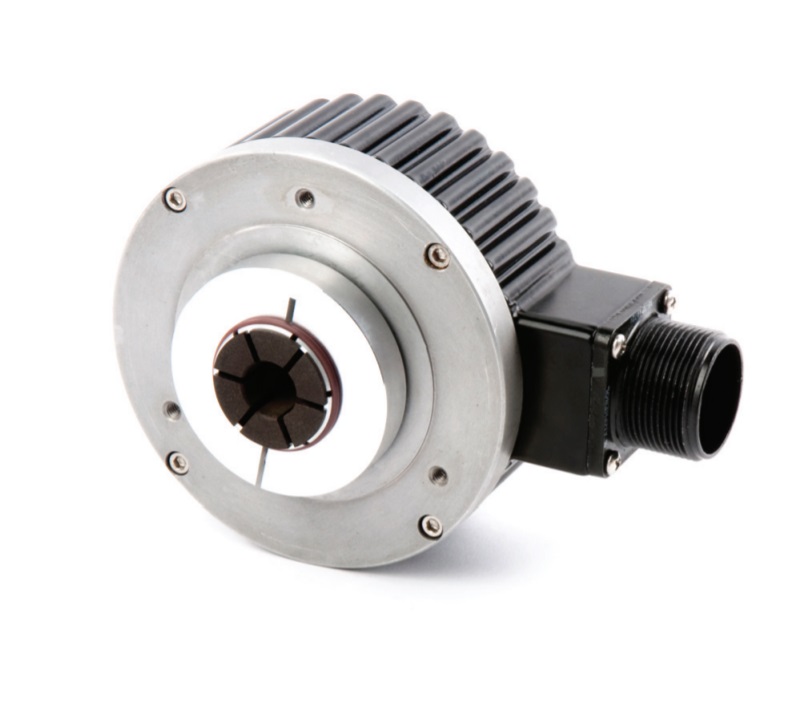

Variant Image

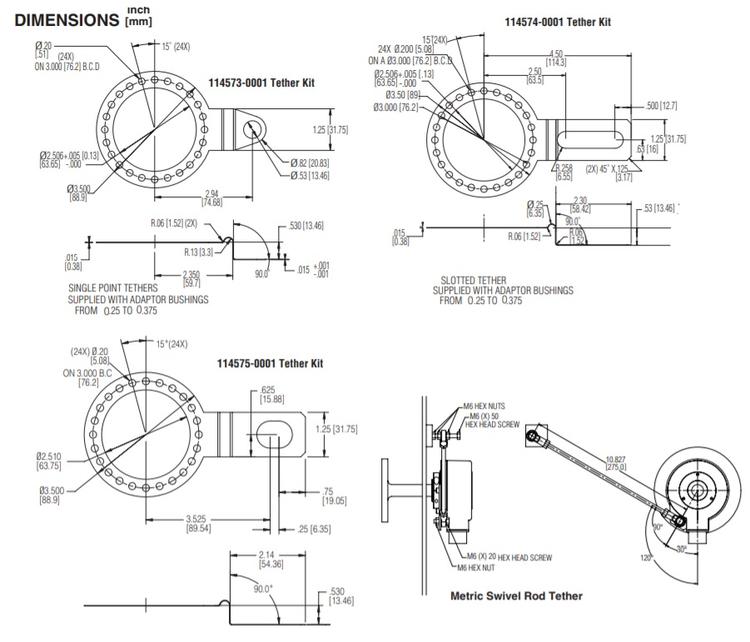

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/2 inch / 12 mm | 1 inch / 20 mm |
| Input Voltage | 5 VDC | 26 VDC |
| Revolutions | 15 PPR | 5000 PPR |
| Temperature | -40 °C | 100 °C |
Variant Applications
| Machines / Applications |
|---|
| Printing Equipment |
| Medical Equipment |
| Pickling Equipment |
| CNC Machines |
| Processing Equipment |
| Industries |
|---|
| Automation Equipment Manufacturer |
| Pharma Plant & Equipment Manufacturer |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
