Series HSD25
Series HSD25 is a harsh duty optical encoder with unbreakable disc upto 3600 PPR. It has IP67 sealing.

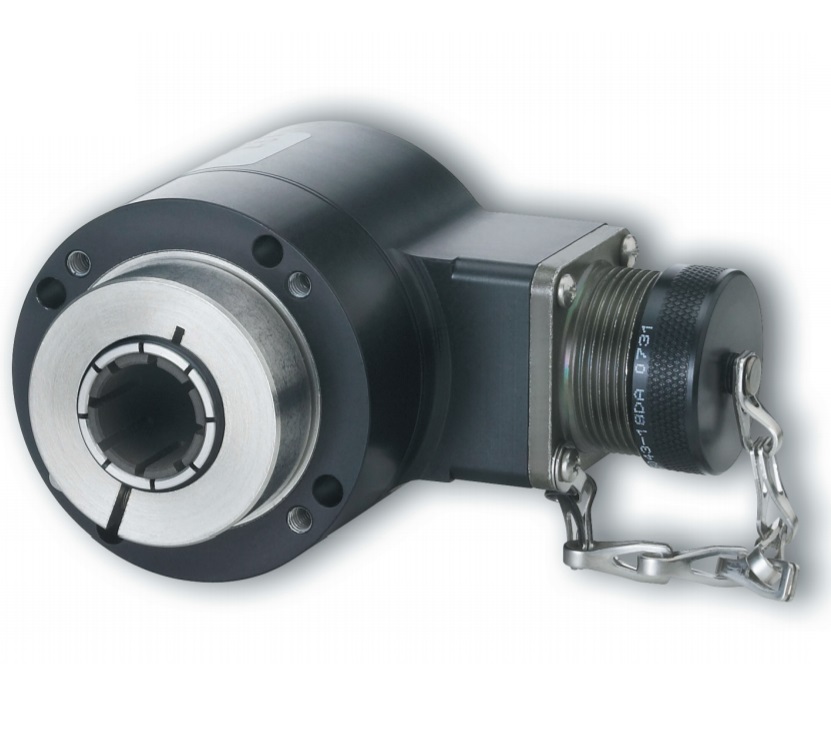

Variant Image

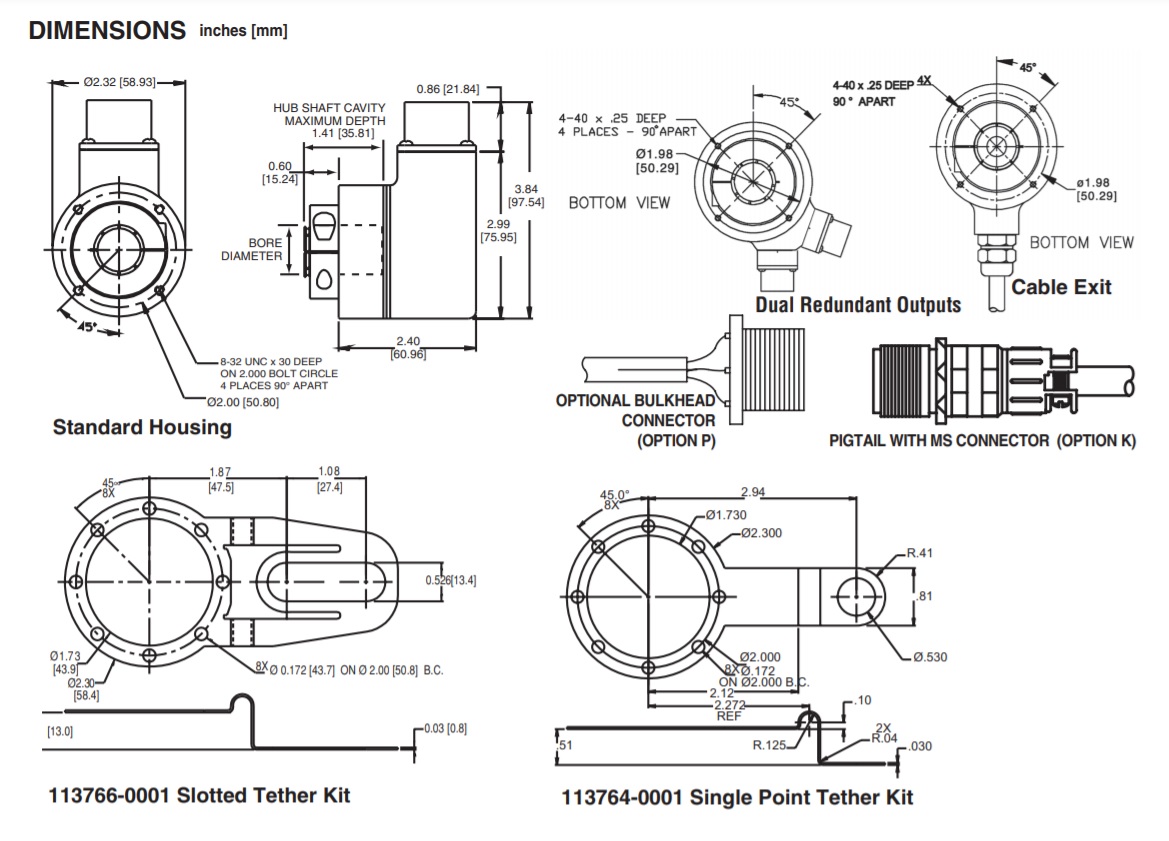

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 1/4 inch / 6 mm | 3/4 inch / 19 mm |
| Input Voltage | 5 VDC | 26 VDC |
| Revolutions | 1 PPR | 3600 PPR |
| Temperature | 0 °C | - |
Variant Applications
| Machines / Applications |
|---|
| Paper Machines |
| Extruder |
| Pickling Equipment |
| Pipe and Handling Cranes |
| Processing Equipment |
| Industries |
|---|
| Oil, Gas Exploration & Refinery |
| Mining |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
