Series HSD44M
Series HSD44M is an extreme heavy duty magnetic encoder with O-ring housing and pilot seals against motor which gives maximum protection. It has isolated coupling and 400G shock and 20G vibration validity.

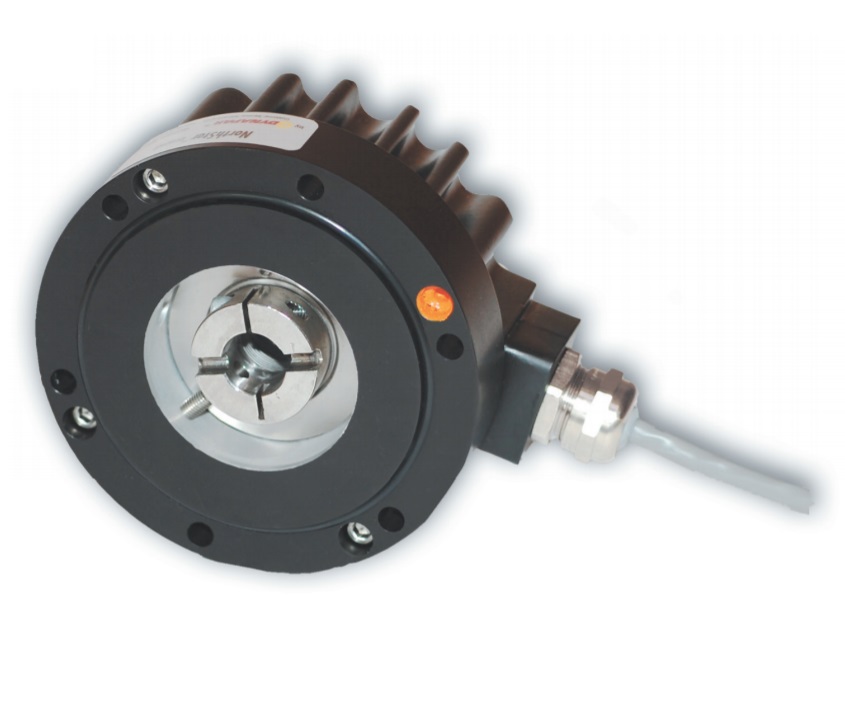

Variant Image

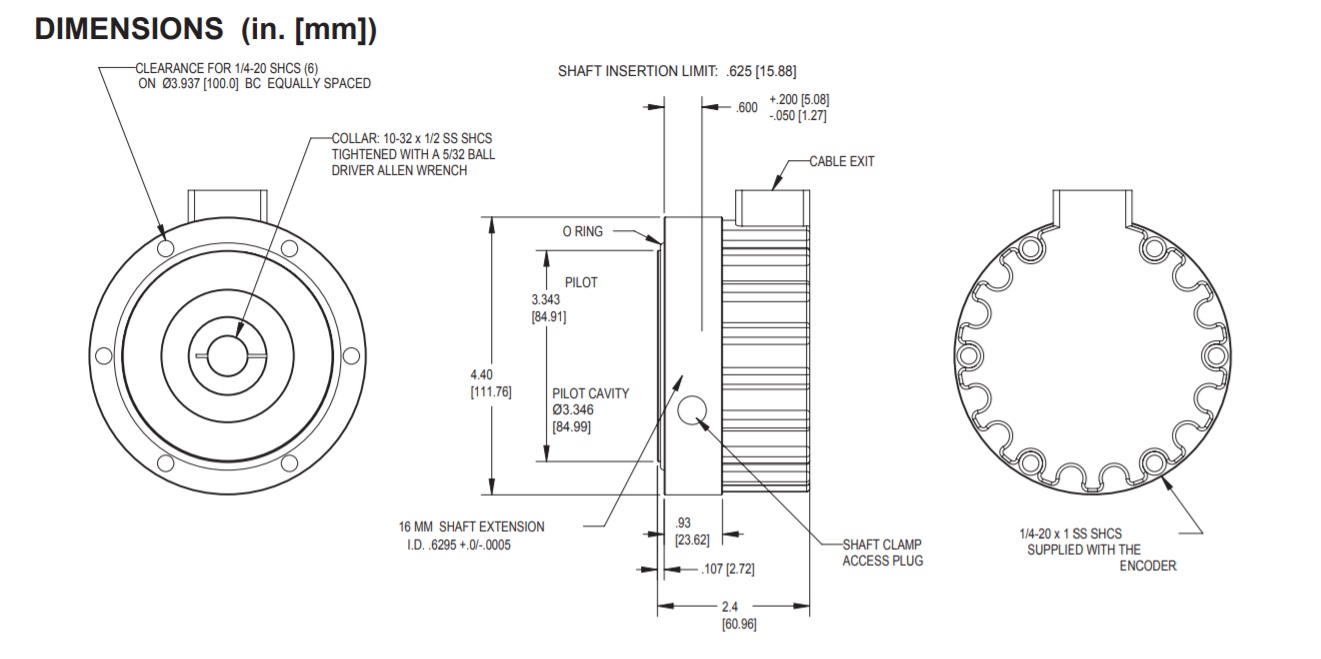

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft Diameter | 16 mm | - |
| Input Voltage | 5 VDC | 30 VDC |
| Revolutions | 15 PPR | 5000 PPR |
| Temperature | -30 °C | 100 °C |
Variant Applications
| Machines / Applications |
|---|
| Paper Machines |
| Extruder |
| Pickling Equipment |
| Pipe and Handling Cranes |
| Processing Equipment |
| Industries |
|---|
| Oil, Gas Exploration & Refinery |
| Mining |
| Automobile Manufacturer |
| Steel & Aluminium Manufacturer |
| Paper Manufacturing |
