HA Series
NSK HA series achieves the best motion accuracy by the ultra-long ball slides. It gives high rigidity and load capacity with friction lowered. It also has good shock resistance.

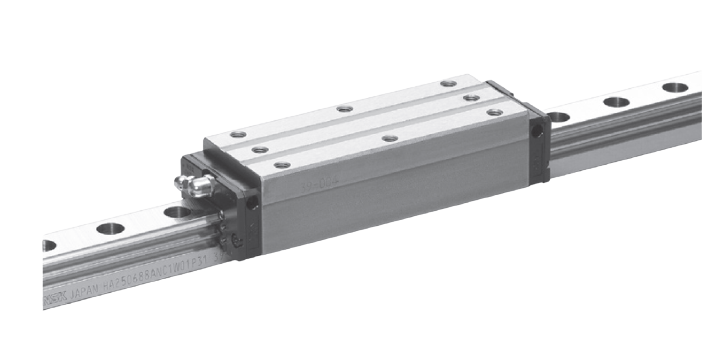

Variant Image

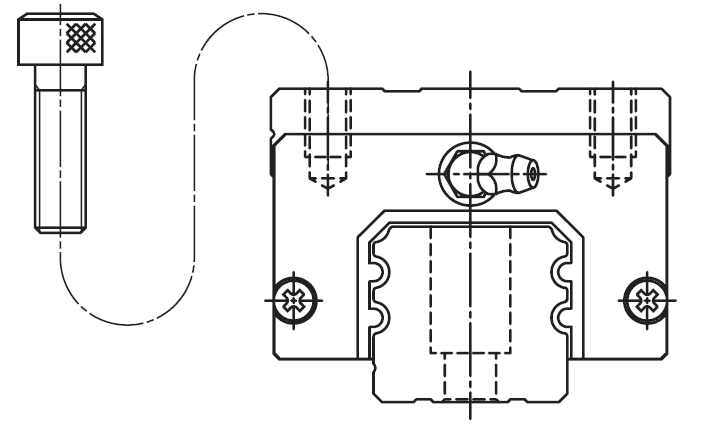

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 23 mm | 53 mm |
| Assembly Height | 36 mm | 70 mm |
| Dynamic load | 43000 N | 184000 N |
| Static load | 50000 N | 445000 N |
Variant Applications
| Machines / Applications |
|---|
| Electric Discharge Machines |
| Die Molding Machines |
| Precision Lathes |
| Industries |
|---|
| Machining Centers Manufacturer |
| Various types of NC Grinders |
| Optical Stages |
| LCD Manufacturing Equipment |
| High-precision Measuring Equipment Manufacturer |
HA Series
NSK HA series achieves the best motion accuracy by the ultra-long ball slides. It gives high rigidity and load capacity with friction lowered. It also has good shock resistance.

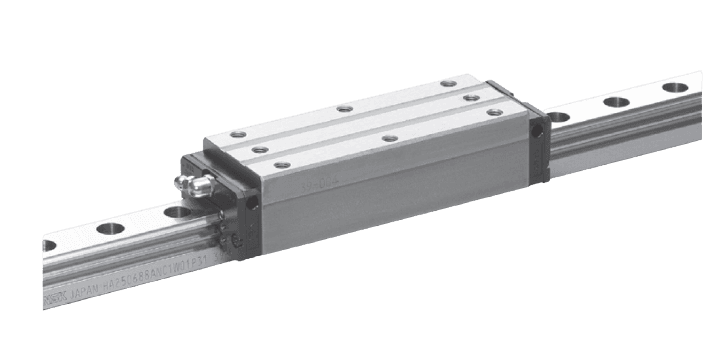

Variant Image
