HS Series
NSK HS series has high motion accuracy. The ball passage vibrations are lowered to almost 33 % than the former models. Its vertical load capacity is higher.

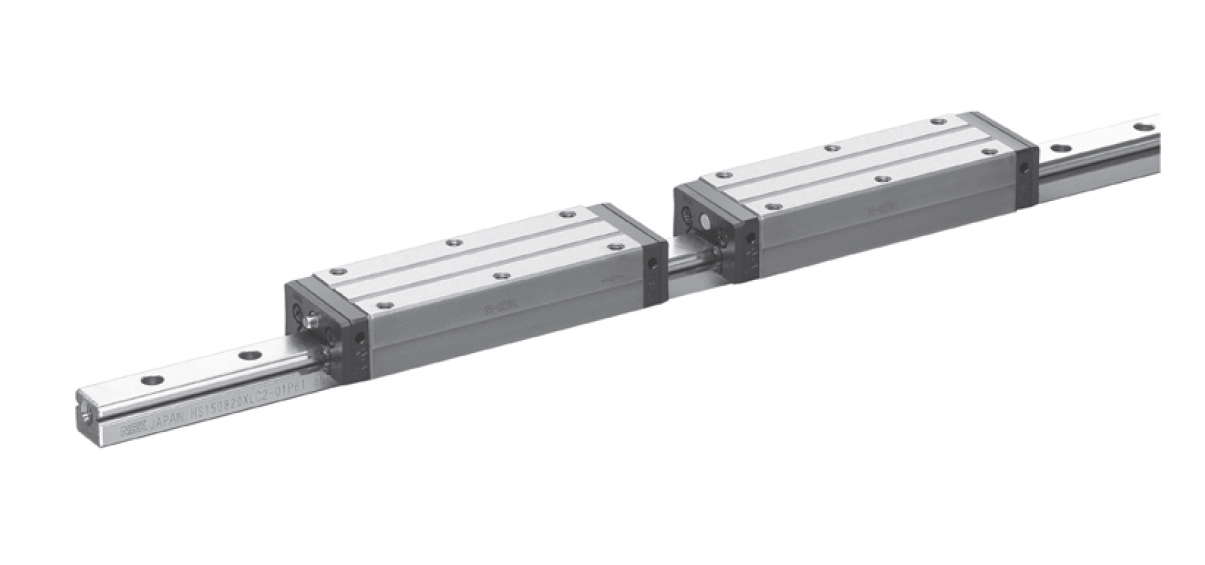

Variant Image

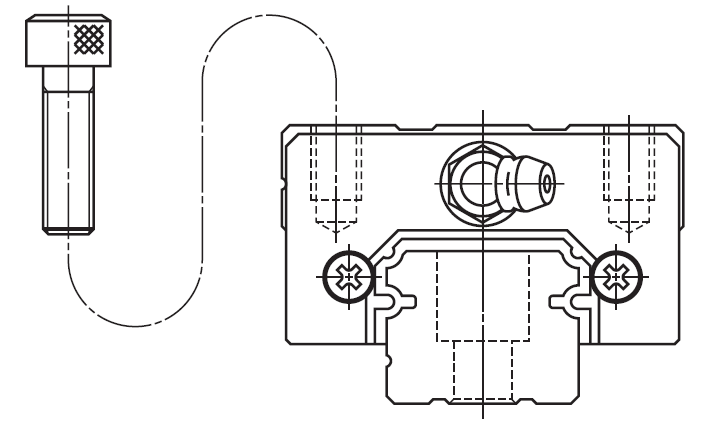

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 34 mm |
| Assembly Height | 24 mm | 48 mm |
| Dynamic load | 16300 N | 75000 N |
| Static load | 40000 N | 172000 N |
Variant Applications
| Machines / Applications |
|---|
| Electric Discharge Machines |
| Precision Lathes |
| Industries |
|---|
| Machining Centers Manufacturer |
| Various types of Grinders |
| Optical Stages |
| LCD Manufacturing Equipment Manufacturer |
| High-precision Measuring Equipment |
