LA Series
NSK LA series is highly rigid and has a high load capacity. It has unique features like strength against shock load four-way equal load distribution.

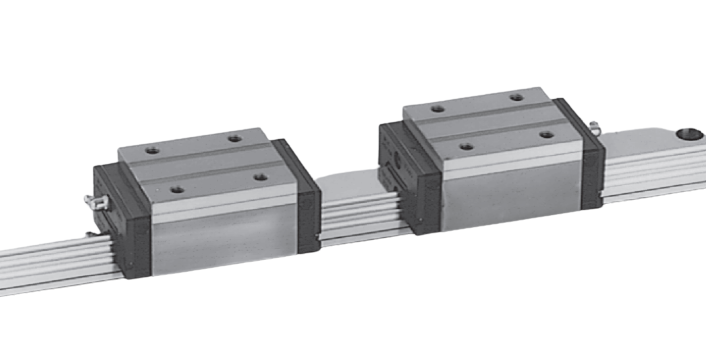

Variant Image

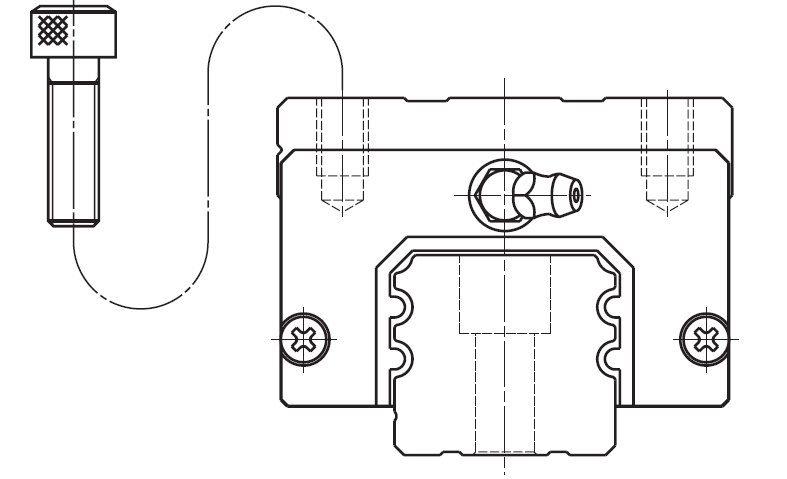

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 23 mm | 63 mm |
| Assembly Height | 36 mm | 90 mm |
| Dynamic Load | 23900 N | 269000 N |
| Static Load | 50000 N | 615000 N |
Variant Applications
| Machines / Applications |
|---|
| Gear-cutting Machines |
| Press Machines |
| Electric Discharge Machines |
| NC Lathes |
| Industries |
|---|
| Machining Centers Manufacturer |
| Heavy Cutting Machine Tools Manufacturers |
LA Series
NSK LA series is highly rigid and has a high load capacity. It has unique features like strength against shock load four-way equal load distribution.

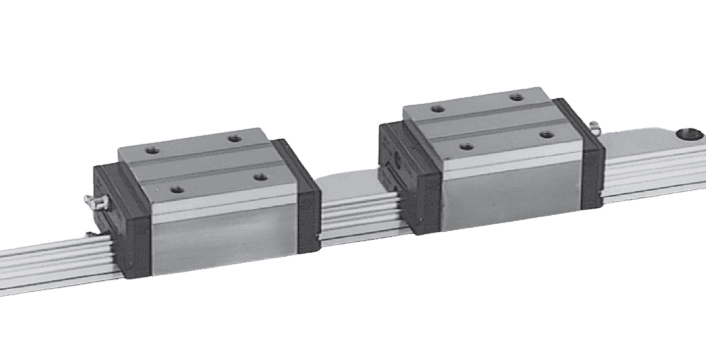

Variant Image
