LE Series
NSK LE is a miniature Linear Guide with a wide rail. These are super thin Linear Guides. It is ideal for single rail use.

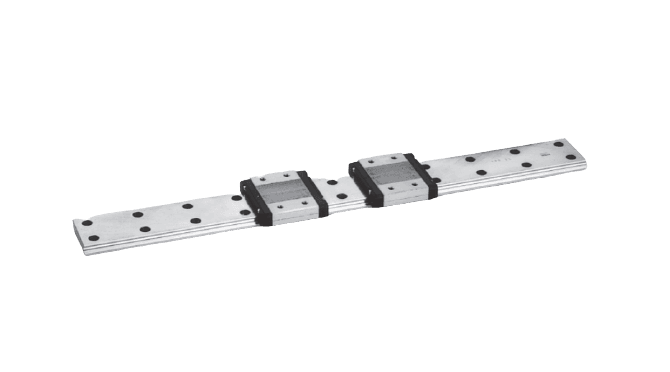

Variant Image

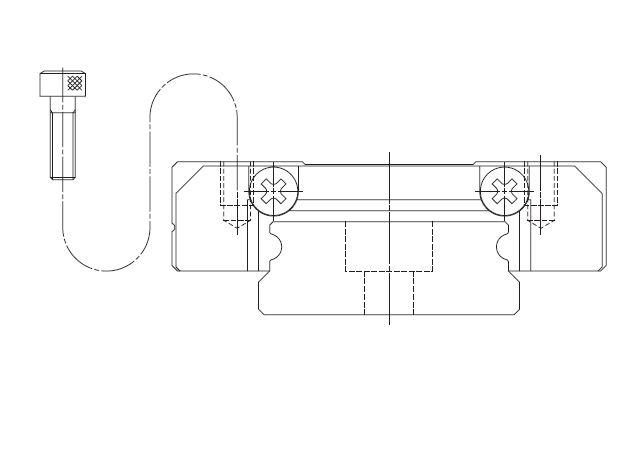

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 10 mm | 42 mm |
| Assembly Height | 6..5 mm | 16 mm |
| Dynamic Load | 470 N | 8200 N |
| Static Load | 835 N | 16000 N |
Variant Applications
| Machines / Applications |
|---|
| Miniature Robots |
| Industries |
|---|
| Electronic Part Manufacturer |
| LCD Manufacturing Equipment |
| Medical Equipment Manufacturer |
| Optical Stages |
| Pneumatic Equipment Manufacturer |
| Computer Peripherals |
LE Series
NSK LE is a miniature Linear Guide with a wide rail. These are super thin Linear Guides. It is ideal for single rail use.

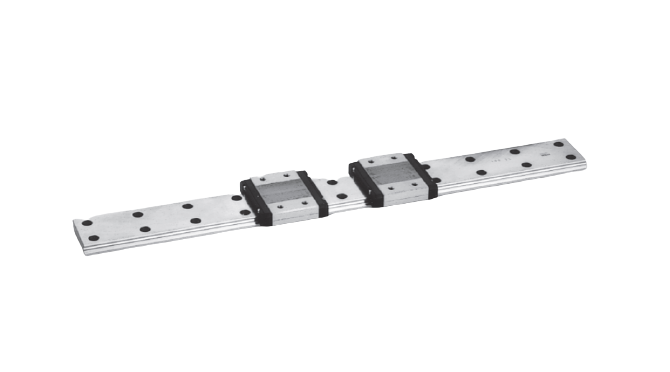

Variant Image
