LL Series
NSK LL series is a lightweight series of Linear Guides. It is compact and has good corrosion resistance.

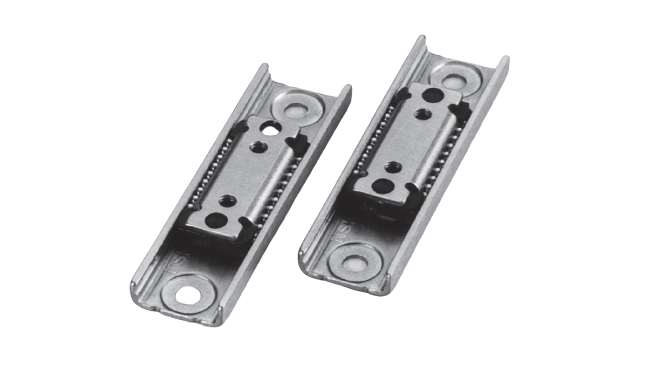

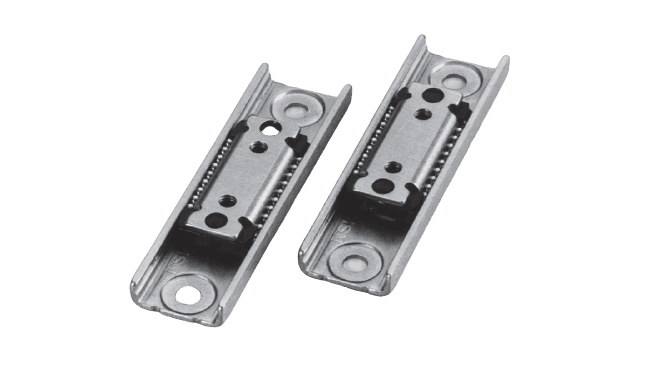

Variant Image

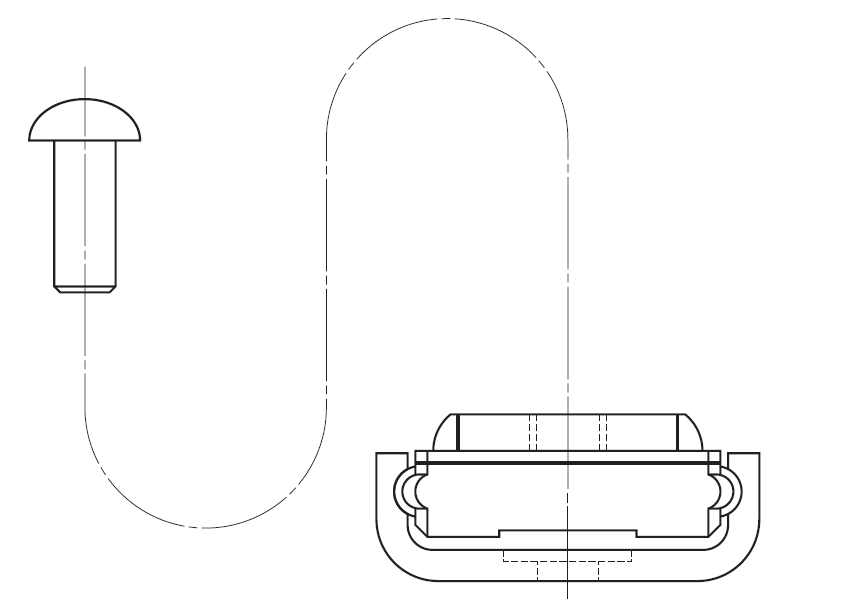

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Pitch | 30 mm | 50 mm |
| Length | 40 mm | 120 mm |
| First, Last hole distance | 5 mm | 10 mm |
Variant Applications
| Machines / Applications |
|---|
| Knitting Machines |
| Industries |
|---|
| Computer Peripherals |
| Pneumatic Equipment |
| Office Equipment |
