LU Series
NSK LU series is a super small Linear Guide. It has a gothic arc groove on both sides. It can take equal loads in vertical and horizontal directions.

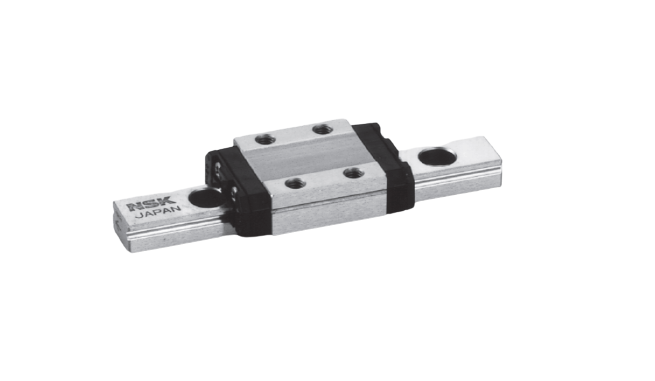

Variant Image

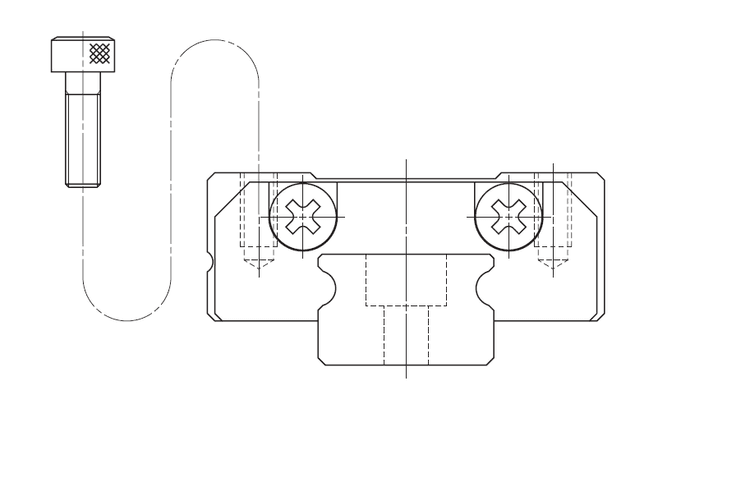

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 5 mm | 15 mm |
| Assembly Height | 6 mm | 16 mm |
| Dynamic Load | 435 N | 6400 N |
| Static Load | 740 N | 11300 N |
Variant Applications
| Machines / Applications |
|---|
| Miniature Robots |
| Industries |
|---|
| Electronic Part Manufacturer |
| LCD Manufacturing Equipment |
| Medical Equipment Manufacturer |
| Optical Stages |
| Pneumatic Equipment Manufacturer |
| Computer Peripherals |
LU Series
NSK LU series is a super small Linear Guide. It has a gothic arc groove on both sides. It can take equal loads in vertical and horizontal directions.
Variant Image

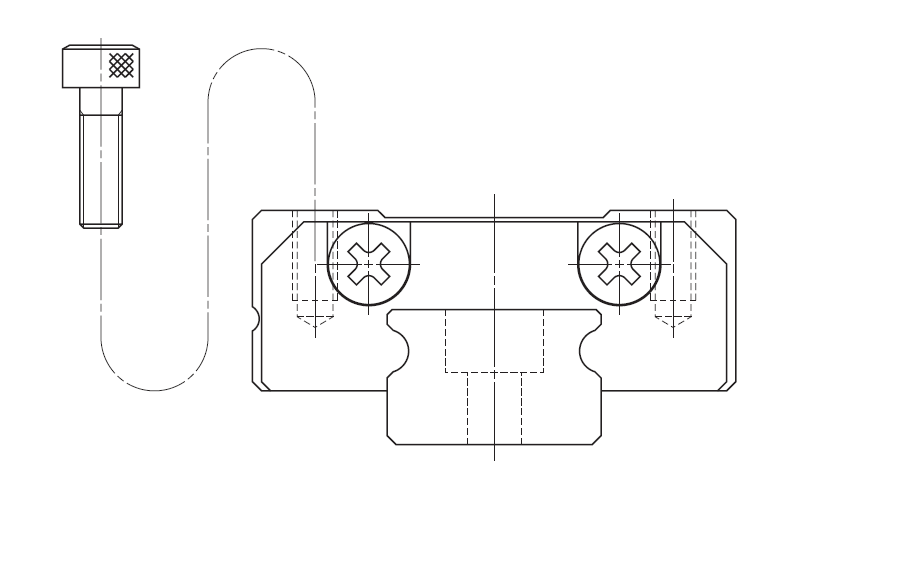

Variant Diagram
