LW Series
NSK has developed LW series for moment loading. This is being a wide rail suit for single rail systems, hence makes it compact for application.

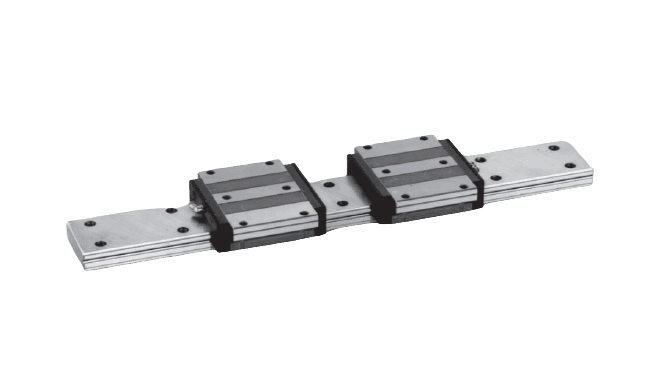

Variant Image

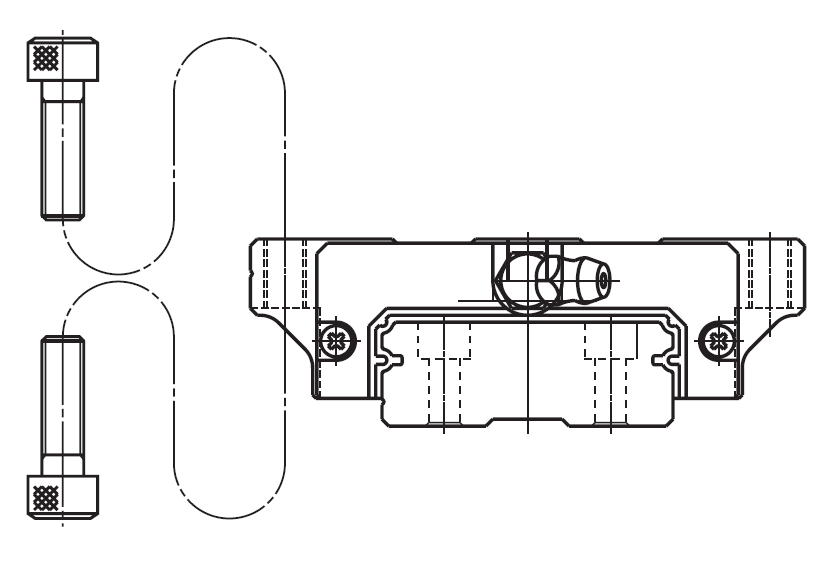

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 33 mm | 90 mm |
| Assembly Height | 17 mm | 50 mm |
| Dynamic Load | 4450 N | 48500 N |
| Static Load | 11300 N | 117000 N |
Variant Applications
| Machines / Applications |
|---|
| Electric Discharge Machines |
| Woodworking Machines |
| Packaging/Packing Machines |
| Industrial Robots |
| Industries |
|---|
| Electronic Part Manufacturer |
| Material Handling Equipment Manufacturer |
| Pneumatic Equipment Manufacturer |
LW Series
NSK has developed LW series for moment loading. This is being a wide rail suit for single rail systems, hence makes it compact for application.

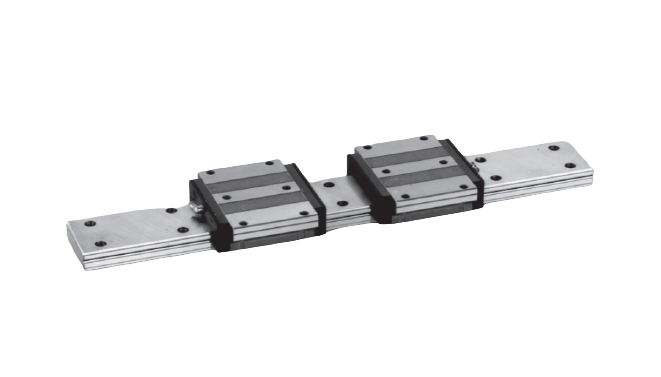

Variant Image
