Miniature LH Series
NSK Miniature LH series features very good self-aligning capacity, high impact load, and corrosion resistance.

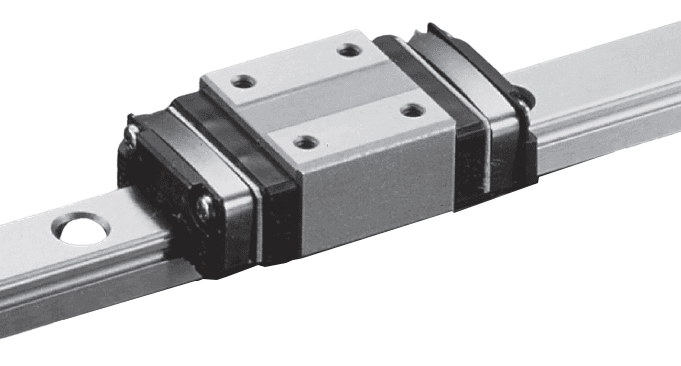

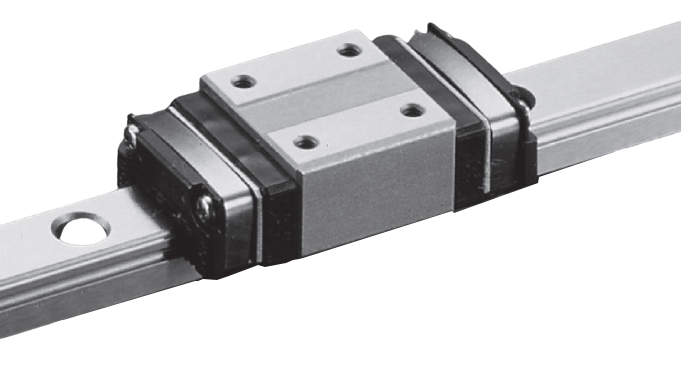

Variant Image

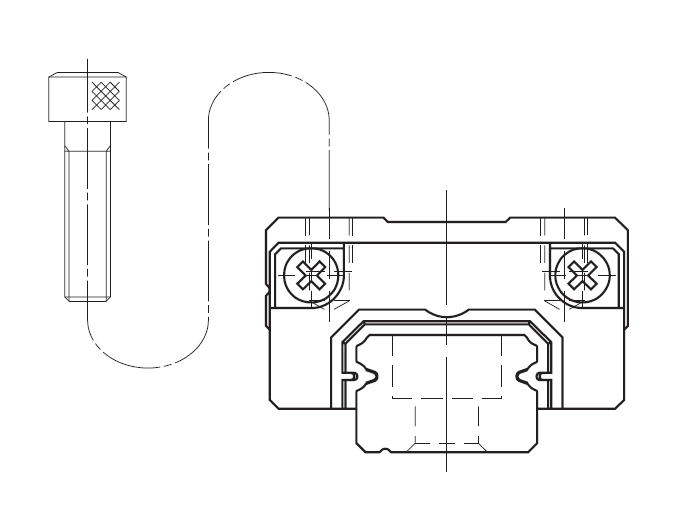

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 8 mm | 12 mm |
| Assembly Height | 11 mm | 20 mm |
| Dynamic Load | 985 N | 4500 N |
| Static Load | 2630 N | 11300 N |
Variant Applications
| Machines / Applications |
|---|
| Miniature Robots |
| Industries |
|---|
| Electronic Part Manufacturer |
| Electronic Part Manufacturer |
| Medical Equipment Manufacturer |
| Optical Stages |
| Pneumatic Equipment Manufacturer |
| Computer Peripherals |
