NH Series
The NH Series apply this new ball groove to achieve double the life expectancy of the conventional Linear Guide. These series of Linear Guides will help improve the life and enable the downsizing of devices.

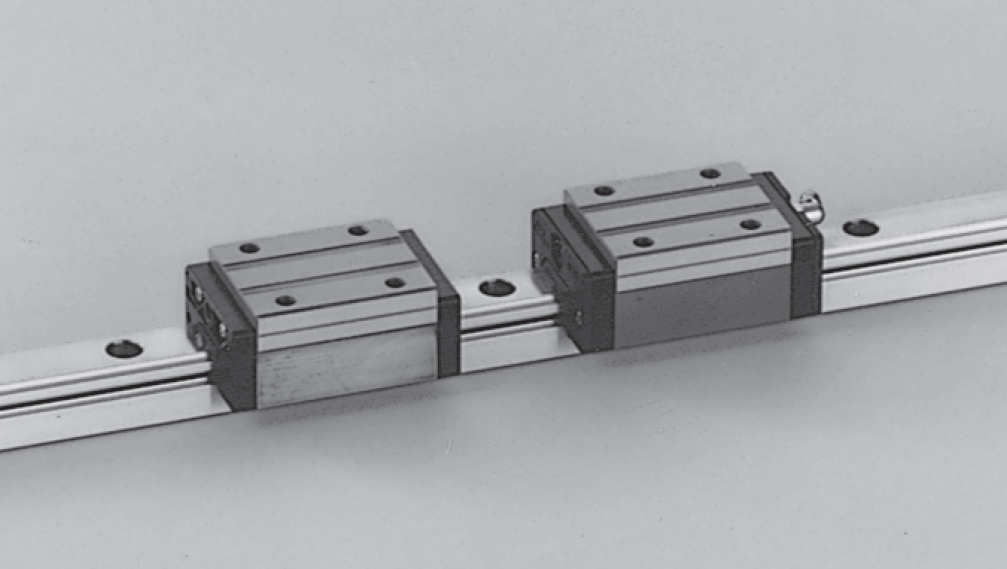

Variant Image

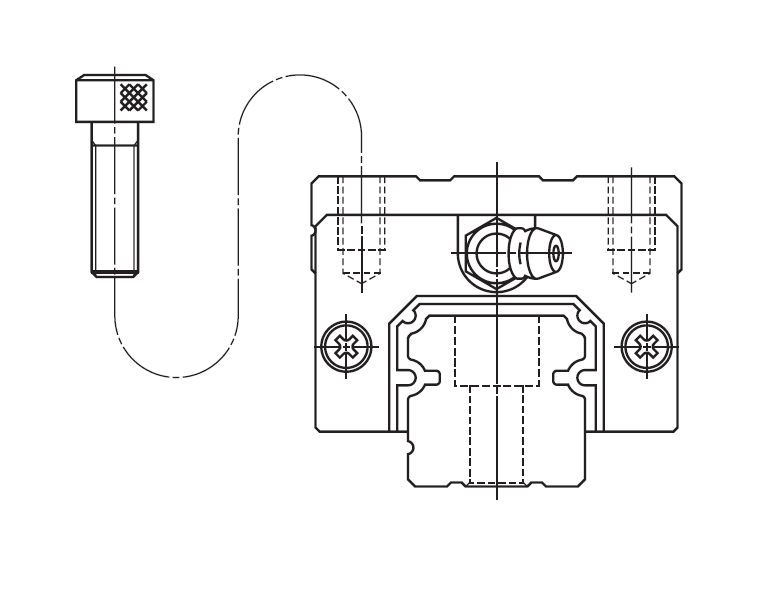

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 65 mm |
| Assembly Height | 24 mm | 90 mm |
| Dynamic Load | 10300 N | 288000 N |
| Static Load | 27500 N | 756000 N |
Variant Applications
| Machines / Applications |
|---|
| NTC HMC Machine N4Q Model |
| Laser Embroidery Machine |
| WIDOS Butt Fusion Welding Machine |
| Brothers- JAPAN CNC Machine |
| Jyoti CNC Machine |
| Industrial Robots |
| Industries |
|---|
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Electronic Part Manufacturer |
