NS Series
NSK NS series has increased load capacity to 1.3 times that of the former LS series. It has excellent self-aligning capacity.

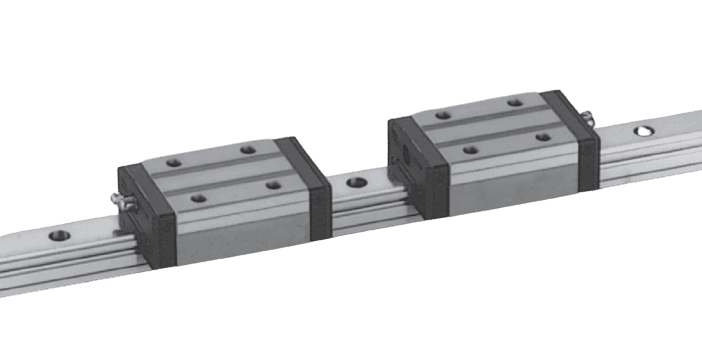

Variant Image

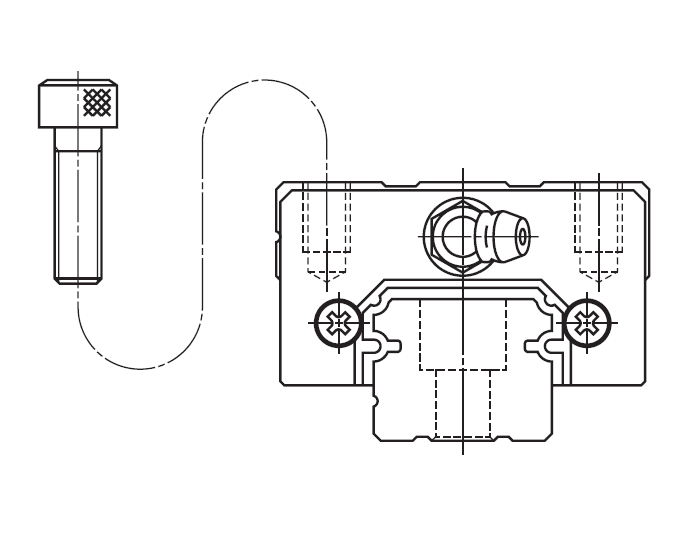

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 35 mm |
| Assembly Height | 24 mm | 48 mm |
| Dynamic Load | 5750 N | 42000 N |
| Static Load | 9100 N | 74500 N |
Variant Applications
| Machines / Applications |
|---|
| Laser Embroidery Machine |
| Robots that remove plastic molds from Injection Machines |
| Food processing Machines |
| Woodworking Machines |
| Electric Discharge Machines |
| Press Machines |
| Cartesian Type Robots |
| Industries |
|---|
| Medical Equipment Manufacturer |
| Measuring Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
| Electronic Part Manufacturer |
| Packaging Equipment Manufacturer |
| Printing Equipment's Manufacturer |
| LCD Manufacturing Equipment |
| Paper Manufacturing |
NS Series
NSK NS series has increased load capacity to 1.3 times that of the former LS series. It has excellent self-aligning capacity.

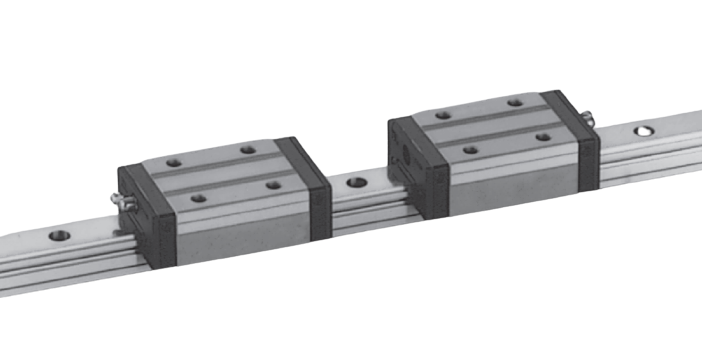

Variant Image
