PE Series
NSK PE series is a miniature wide type Linear Guide. The features like lightweight, dust proofing, low noise makes it easy to operate and compact.

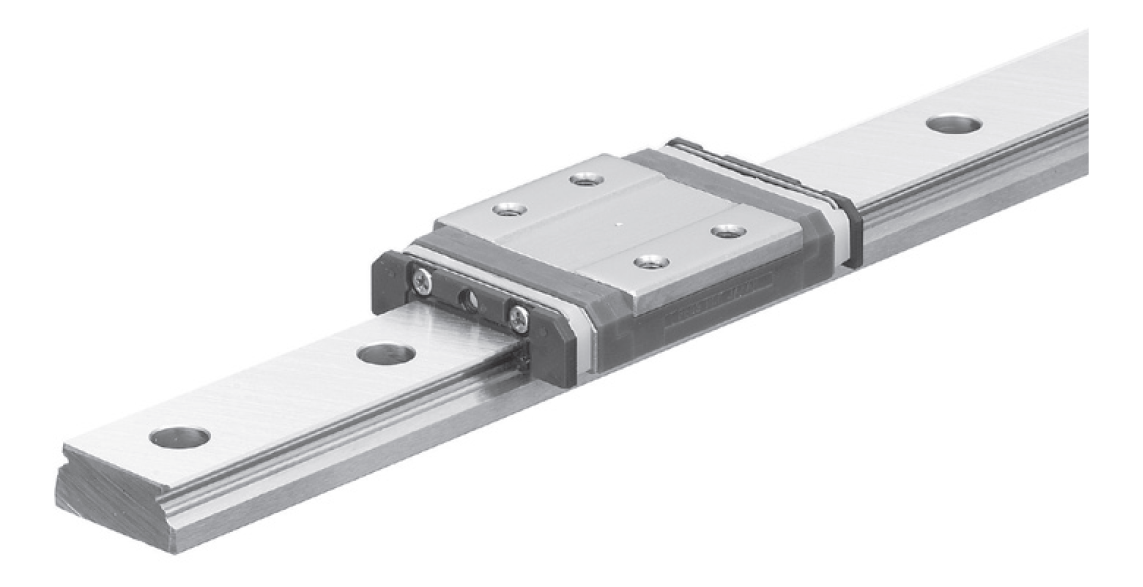

Variant Image

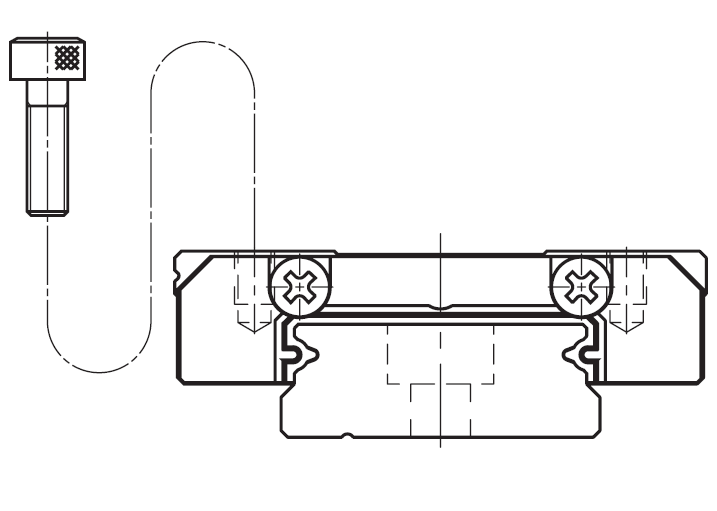

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 10 mm | 42 mm |
| Assembly Height | 6..5 mm | 16 mm |
| Dynamic Load | 550 N | 8200 N |
| Static Load | 1160 N | 16000 N |
Variant Applications
| Machines / Applications |
|---|
| Miniature Robots |
| PCB-Drilling Machine |
| Industries |
|---|
| Electronic Part Manufacturer |
| LCD Manufacturing Equipment |
| Medical Equipment Manufacturer |
| Optical Stages |
| Pneumatic Equipment Manufacturer |
| Computer Peripherals |
