PU Series
NSK has designed miniature Linear Guides like the PU series. It is lightweight and operates smoothly. Dust generation and noise are reduced. It also has good corrosion resistance.

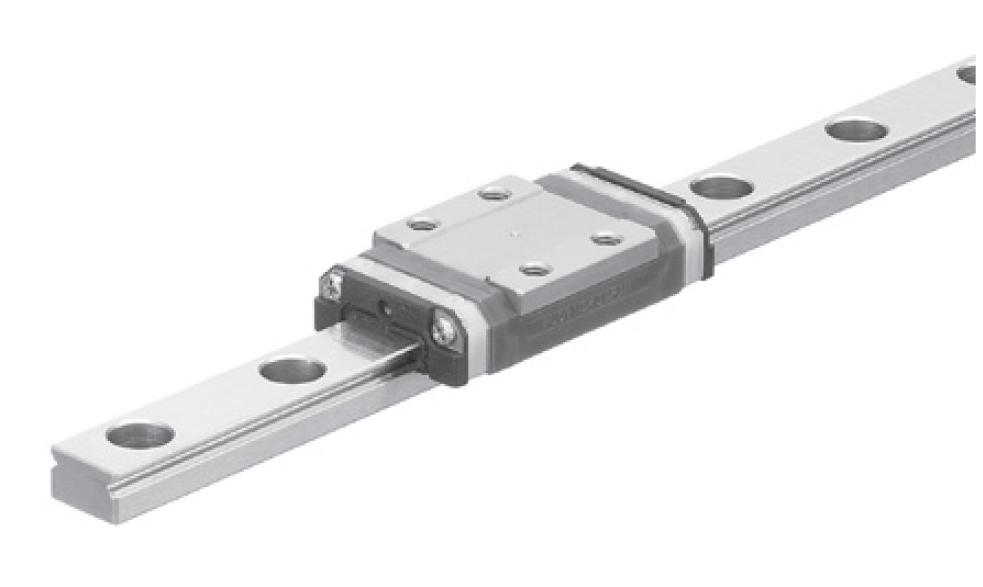

Variant Image

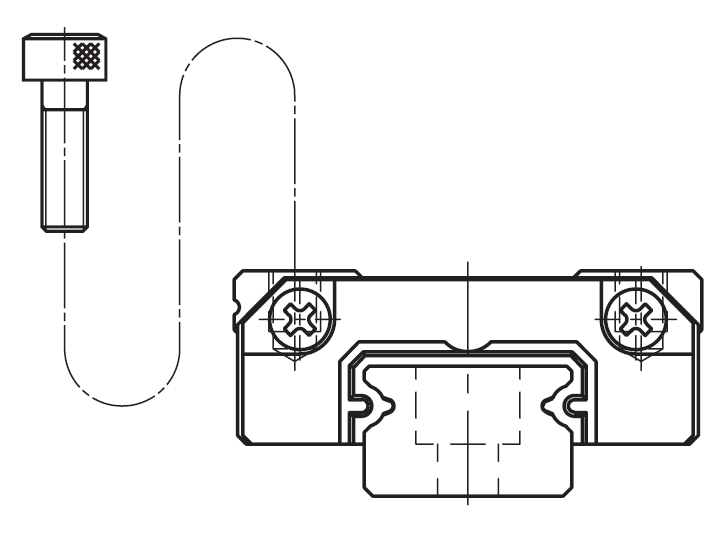

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 5 mm | 15 mm |
| Assembly Height | 6 mm | 16 mm |
| Dynamic Load | 440 N | 6400 N |
| Static Load | 775 N | 11300 N |
Variant Applications
| Machines / Applications |
|---|
| Miniature Robots |
| PCB-Drilling Machine |
| Industries |
|---|
| Electronic Part Manufacturer |
| LCD Manufacturing Equipment |
| Medical Equipment Manufacturer |
| Optical Stages |
| Pneumatic Equipment Manufacturer |
| Computer Peripherals |
