VH Series
NSK VH series comes with end seals and an NSK K1 lubrication unit as a standard which makes it a highly seal proof and durable Linear Guide.

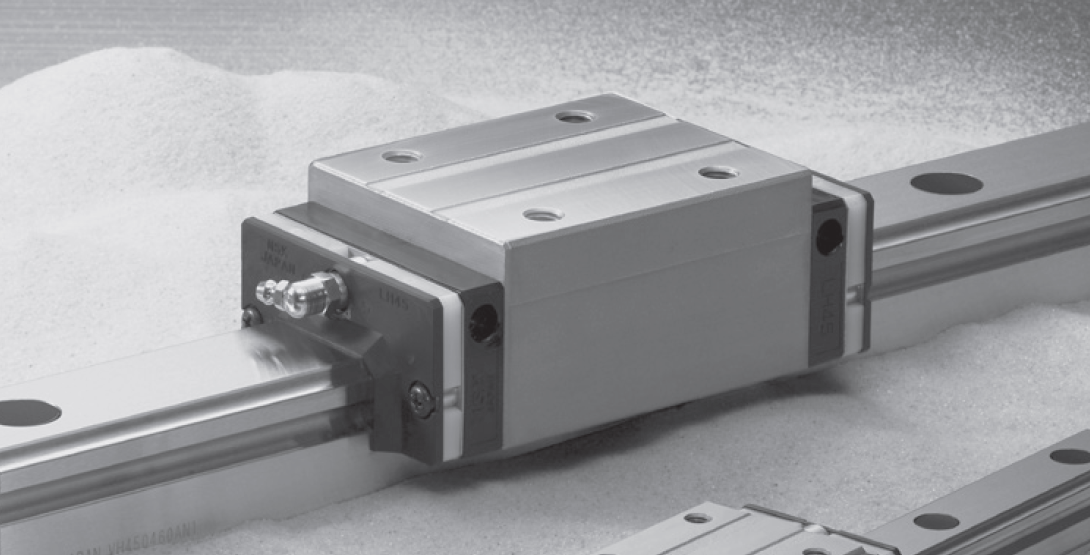

Variant Image

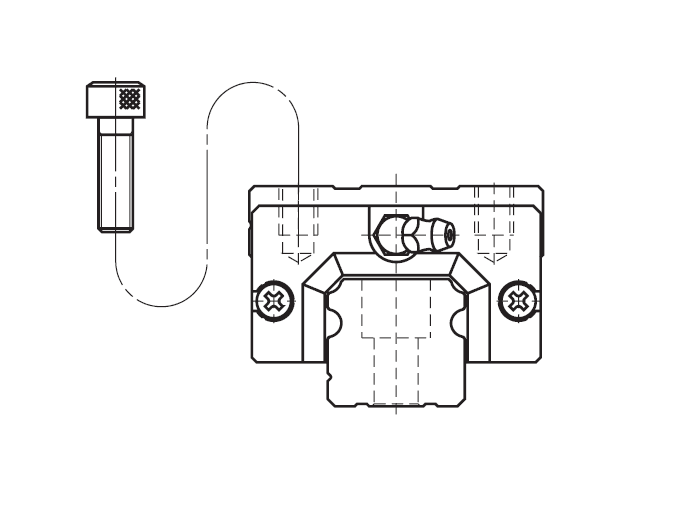

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 55 mm |
| Assembly Height | 24 mm | 80 mm |
| Dynamic Load | 11300 N | 153000 N |
| Static Load | 20700 N | 264000 N |
Variant Applications
| Machines / Applications |
|---|
| Industrial Robots |
| Woodworking Machines |
| Laser Cutting Machines |
| Electric Discharge Machines |
| Industries |
|---|
| Material Handling Equipment Manufacturer |
| Packaging Equipment Manufacturer |
