Finished shaft end MA type, FA type and SA type
NSK ball screws use Gothic arch grooves to minimize the clearance between the balls and grooves, hence the backlash is minimized without applying preload.

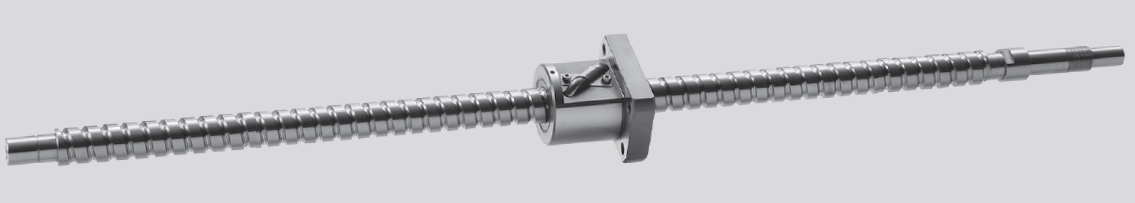

Variant Image

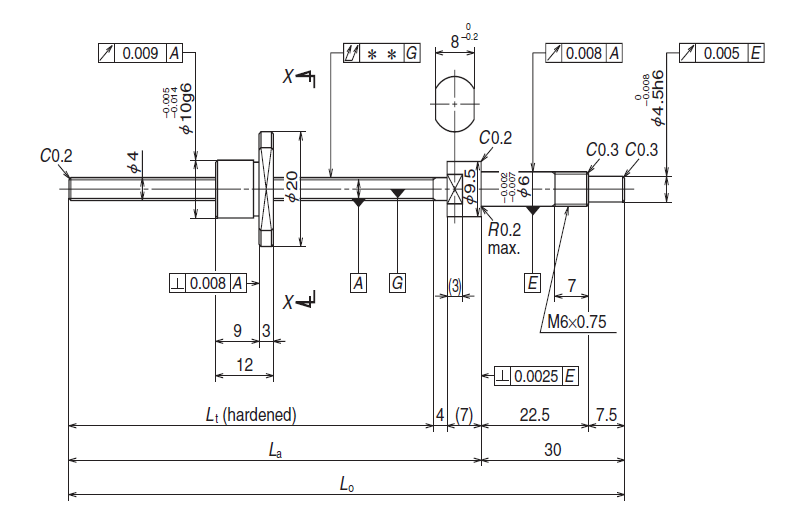

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Screw Diamater | 4 mm | 50 mm |
| Lead | 1 mm | 50 mm |
| Dynamic load | 315 N | 61000 N |
| Static load | 370 N | 180000 N |
Variant Applications
| Machines / Applications |
|---|
| Industries |
|---|
