Flange type(EM,GM)
NSK Roller Linear Guide has two basic types which are Square and Flange type. Roller Guides are preferred for long life and impact loading conditions.

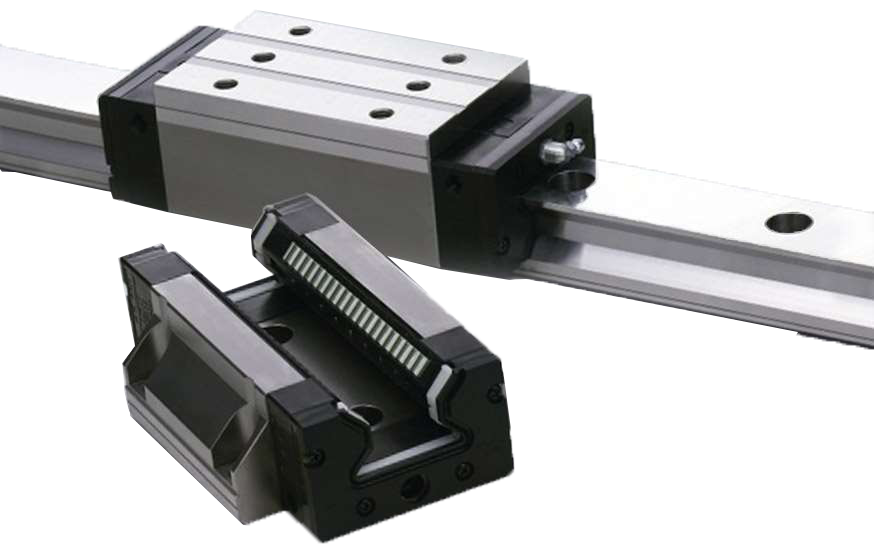

Variant Image

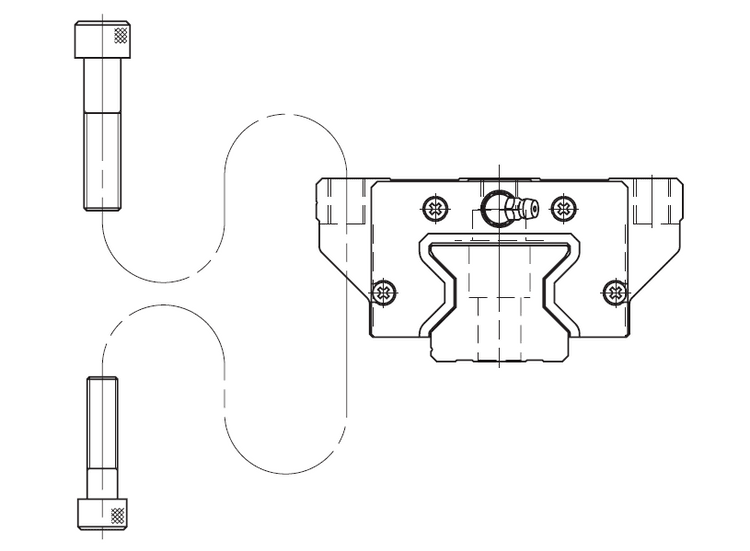

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Rail Width | 15 mm | 65 mm |
| Assembly Height | 24 mm | 90 mm |
| Dynamic Load | 10300 N | 288000 N |
| Static Load | 27500 N | 756000 N |
Variant Applications
| Machines / Applications |
|---|
| JSW Injection Molding Machine |
| UBE Injection Molding Machine |
| Toshiba Plastic Molding Machine |
| Duplex Milling Cutter Machine |
| Press Machines |
| Gear-Cutting Machines |
| Industries |
|---|
| Machining Centers Manufacturer |
| Heavy Cutting Machine Tools Manufacturers |
| Automobile Industry |
Flange type(EM,GM)
NSK Roller Linear Guide has two basic types which are Square and Flange type. Roller Guides are preferred for long life and impact loading conditions.

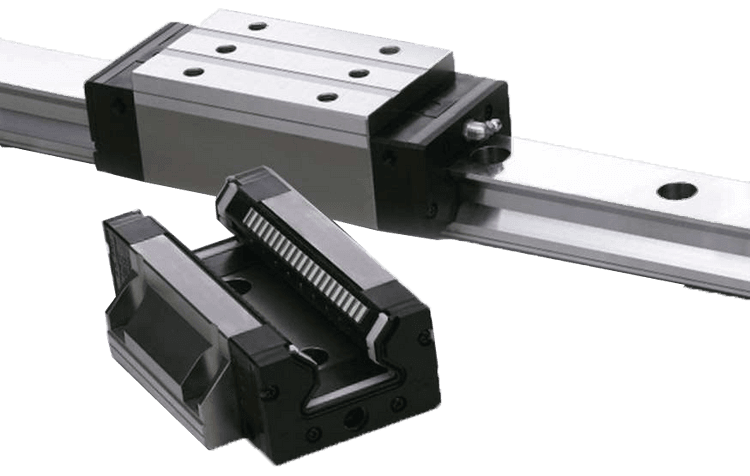

Variant Image
