SJ Bearings

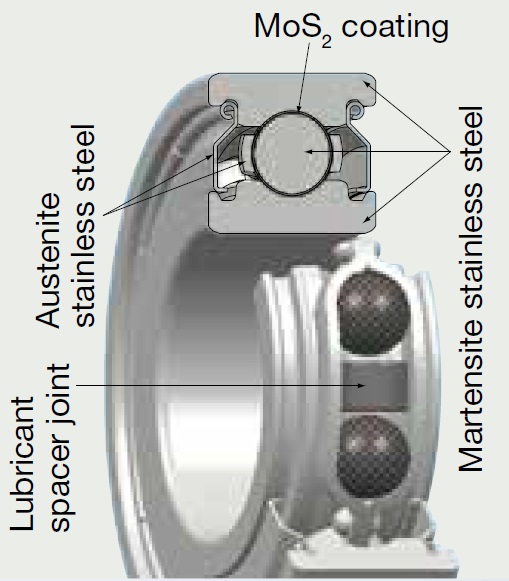

SJ Bearings have a “peapod” structure, with solid lubricant spacer joints mounted between two balls in cage pockets. These bearings are suitable for high-temperature environments from normal atmosphere up to vacuum.

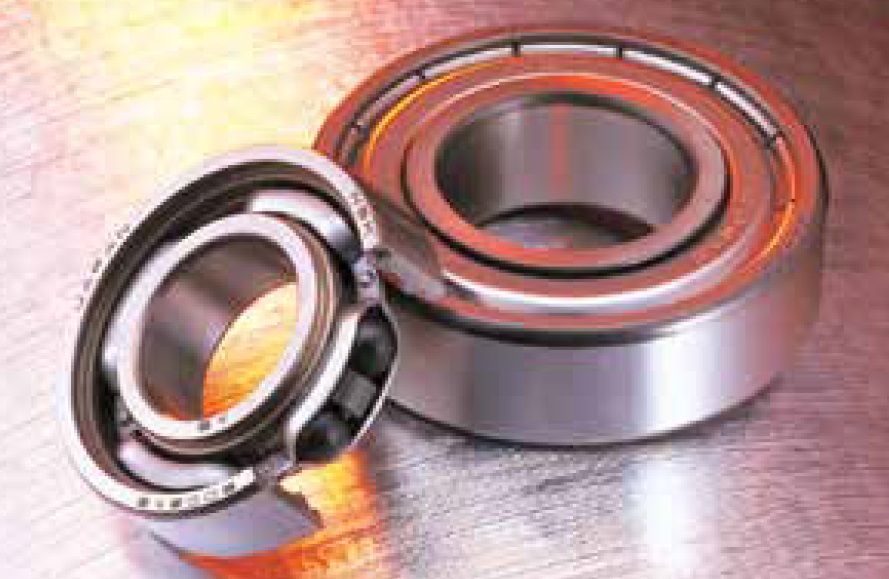

Variant Image
Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Bore Diameter | 8 mm | 30 mm |
| Outside Diameter | 22 mm | 55 mm |
| Limiting Load | 56 N | 220 N |
Variant Applications
| Machines / Applications |
|---|
| Vacuum Vapor Deposition Equipment |
| Kilns |
| High-Temperature Conveyance equipment |
| Industries |
|---|
| Metal Industry |
