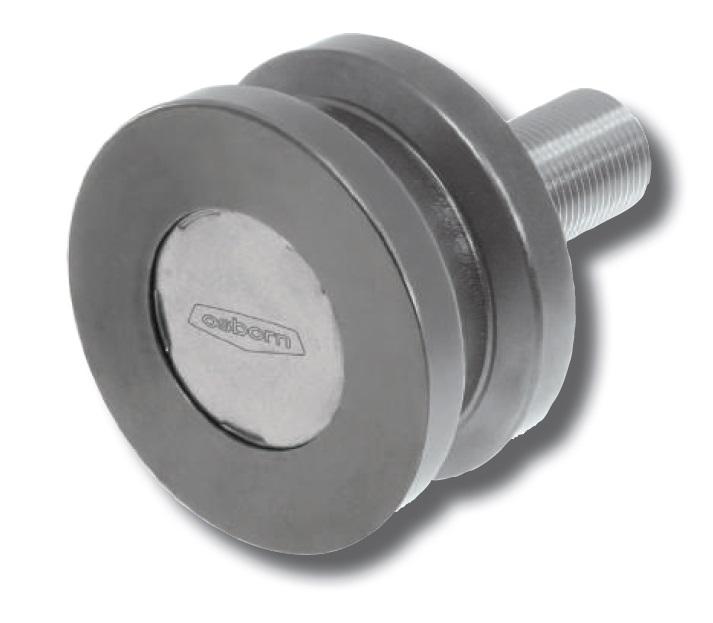

Double-Flanged Concentric Stud Style (Inch)
OSBORN Double-Flanged Concentric Stud Style(Inch) load runner consist of items such as FFLR-1-1/2-4, FFLR-2-4, FFLR-2-1/2-4, FFLR-3-4.
Double-Flanged Concentric Stud Style (Inch)
OSBORN Double-Flanged Concentric Stud Style(Inch) load runner consist of items such as FFLR-1-1/2-4, FFLR-2-4, FFLR-2-1/2-4, FFLR-3-4.

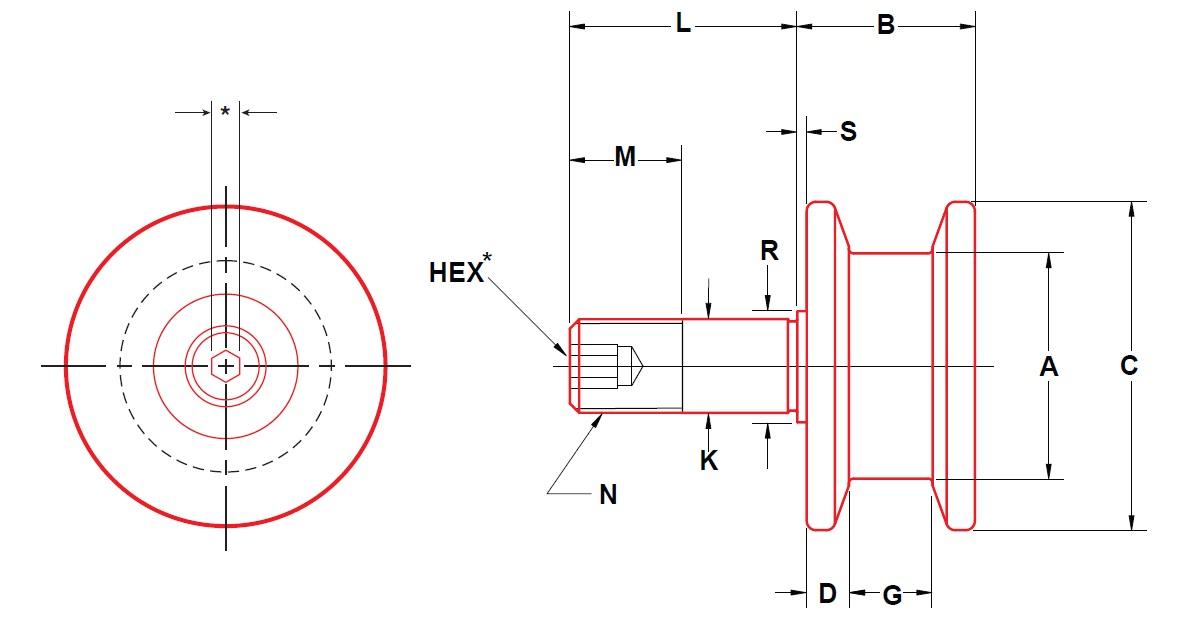

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 1.5 inch | 3 inch |
| Roller Width | 1-3/16 inch | 2 inch |
| Flange Diameter | 2-3/16 inch | 3-15/16 inch |
| Flange Thickness | 0.281 inch | 0.531 inch |
| Stud Diameter | 0.625 inch | 1.25 inch |
| Stud Length | 1-1/2 inch | 2-1/2 inch |
| Groove Width | 0.558 inch | 0.874 inch |
| Radial Load static limit | 1100 lbs | 12263 lbs |
| Static Thrust | 680 lbs | 12000 lbs |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
