Flanged Concentric Stud Style (Inch)

OSBORN Flanged Concentric Stud Style(Inch) load runner consist of items such as FLR-1, FLR-1-1/8, FLR-1-1/4, FLR-1-3/8, FLR-1-1/2, FLR-1-1/2-2, FLR-1-3/4, FLR-2, FLR-2-1/4, FLR-2-1/2, FLR-2-1/2-1, FLR-2-3/4, FLR-3, FLR-3-1/4, FLR-3-1/2, FLR-4, FLR-4M, FLR-4-1/2, FLR-5, FLR-6, FLR-7, FLR-8.

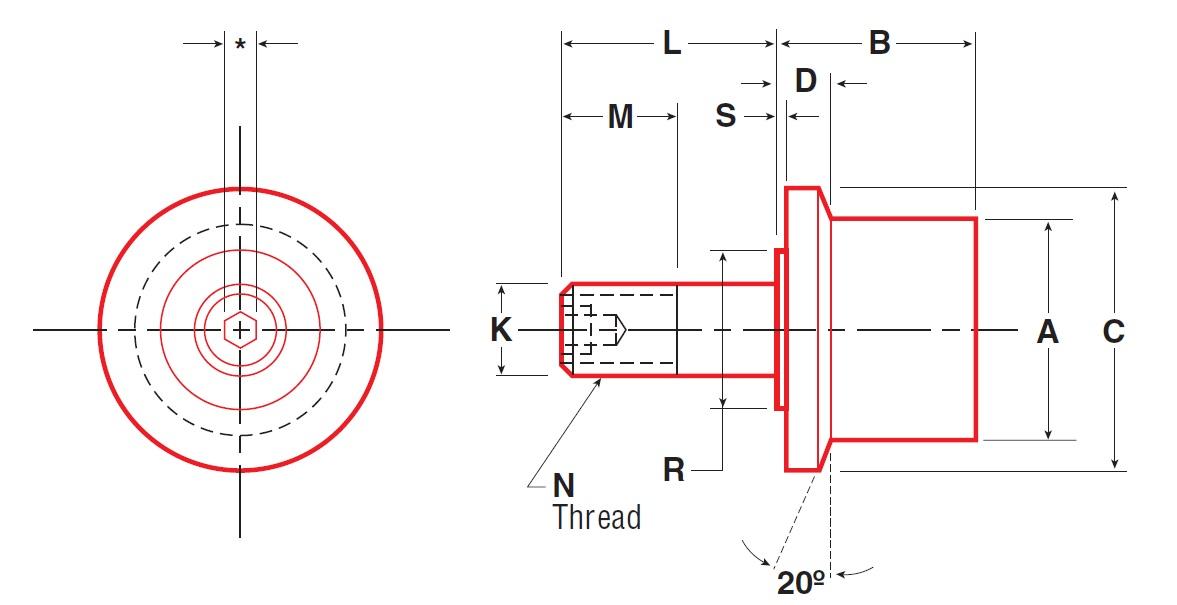

Flanged Concentric Stud Style(inch)-dig.jpg
Flanged Concentric Stud Style(inch)-dig.jpg

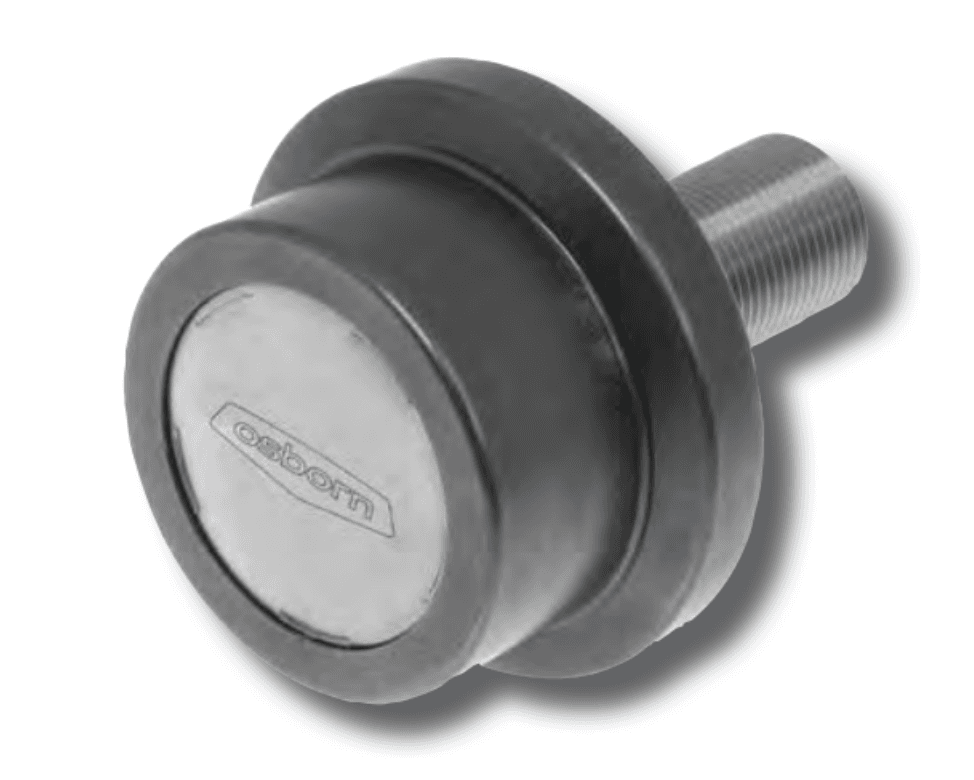

Flanged Concentric Stud Style(inch).png
ParametersMinMax
Roller Diameter1 inch8 inch
Roller Width0.781 inch3 inch
Flange Diameter 1.375 inch8.938 inch
Flange Thickness0.219 inch0.718 inch
Stud Diameter 0.437 inch2.5 inch
Stud Length 1 inch5.5 inch
Radial Load static limit230 IBS56400 IBS
Static Thrust340 IBS33100IBS
