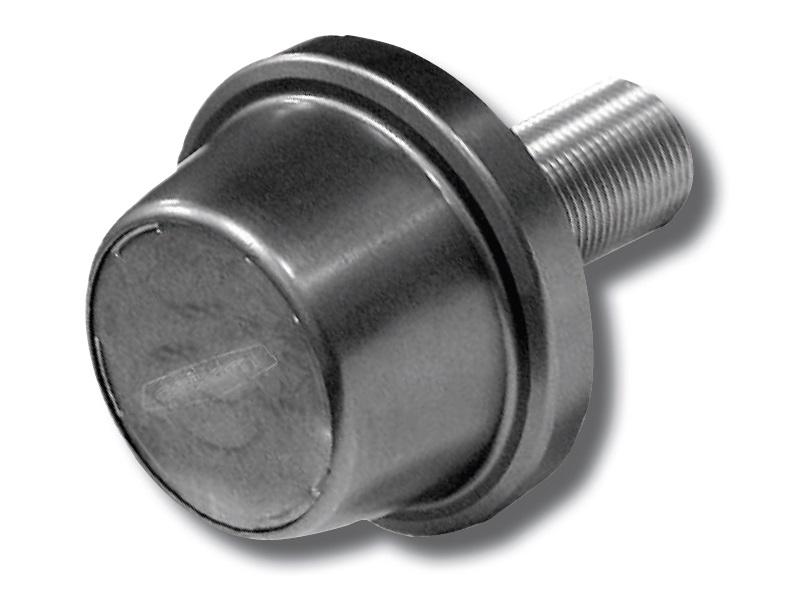

Flanged Crown Concentric (Inch)
OSBORN Flanged Crown Concentric (Inch) load runner consists of items such as FLRC-2-1/2, FLRC-3, FLRC-4.
Flanged Crown Concentric (Inch)
OSBORN Flanged Crown Concentric (Inch) load runner consists of items such as FLRC-2-1/2, FLRC-3, FLRC-4.

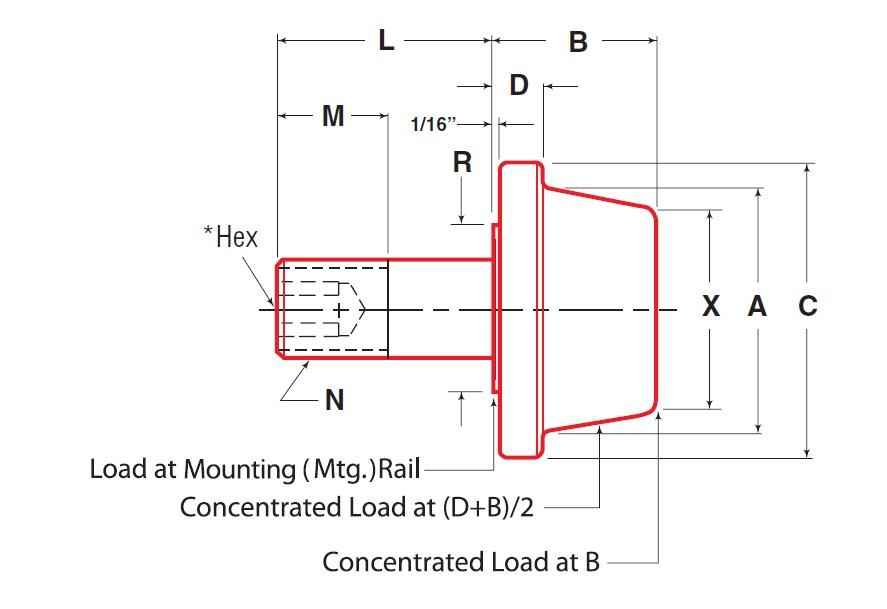

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 2.5 inch | 4 inch |
| Roller Width | 1.688 inch | 2 inch |
| Flange Diameter | 3 inch | 4.938 inch |
| Flange Thickness | 0.5 inch | 0.593 inch |
| Stud Diameter | 1 inch | 2.5 inch |
| Stud Length | 2.25 inch | 2.750 inch |
| Radial Load static limit | 2270 lbs | 20000 lbs |
| Static Thrust | 1400 lbs | 12000 lbs |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
