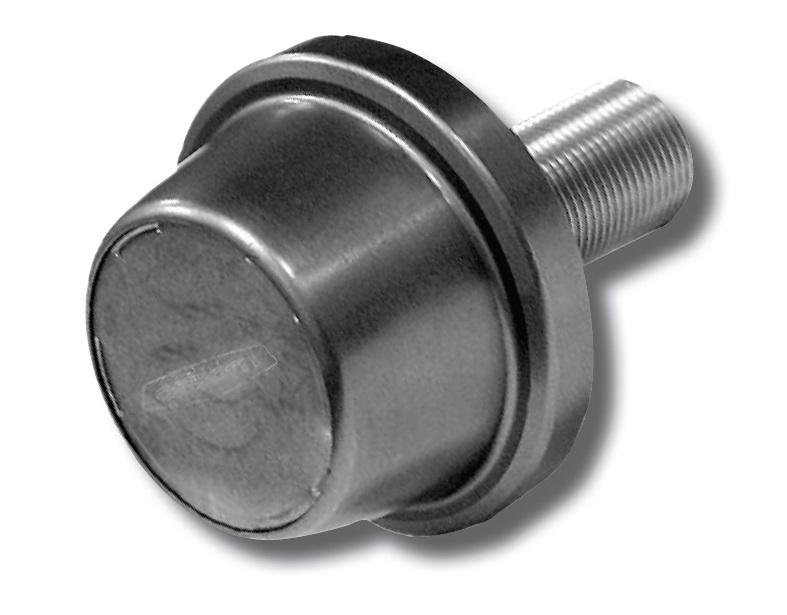

Flanged Crown Eccentric (Inch)
OSBORN Flanged Crown Eccentric (inch) load runner consist of items such as FLRCE-2-1/2, FLRCE-3, FLRCE-4.
Flanged Crown Eccentric (Inch)
OSBORN Flanged Crown Eccentric (inch) load runner consist of items such as FLRCE-2-1/2, FLRCE-3, FLRCE-4.

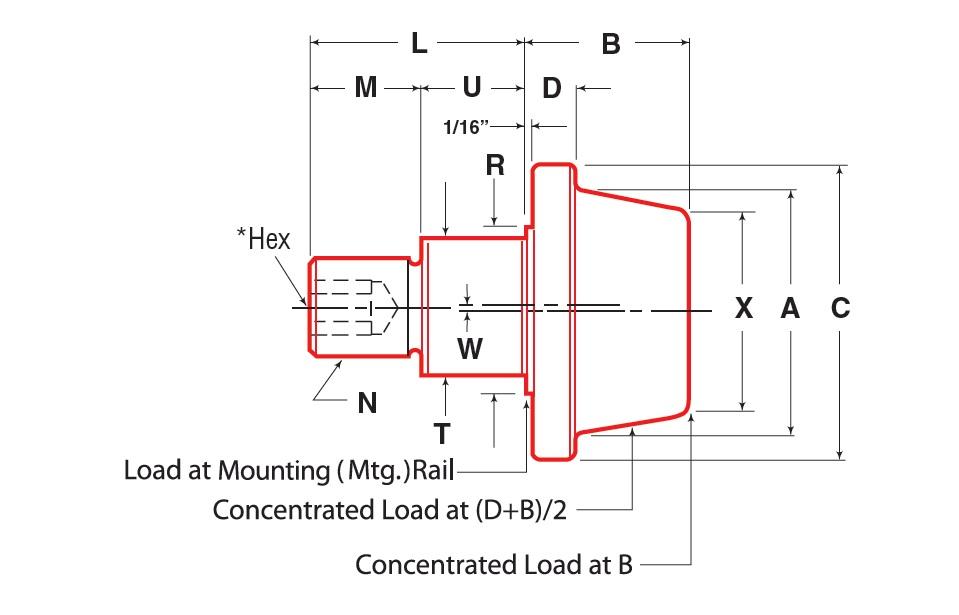

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 2.5 inch | 4 inch |
| Roller Width | 1.688 inch | 2 inch |
| Flange Diameter | 3 inch | 4.938 inch |
| Flange Thickness | 0.5 inch | 0.593 inch |
| Stud Diameter | 1 inch | 2.5 inch |
| Stud Length | 2.25 inch | 2.750 inch |
| Radial Load static limit | 2270 lbs | 20000 lbs |
| Static Thrust | 1400 lbs | 12000 lbs |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
