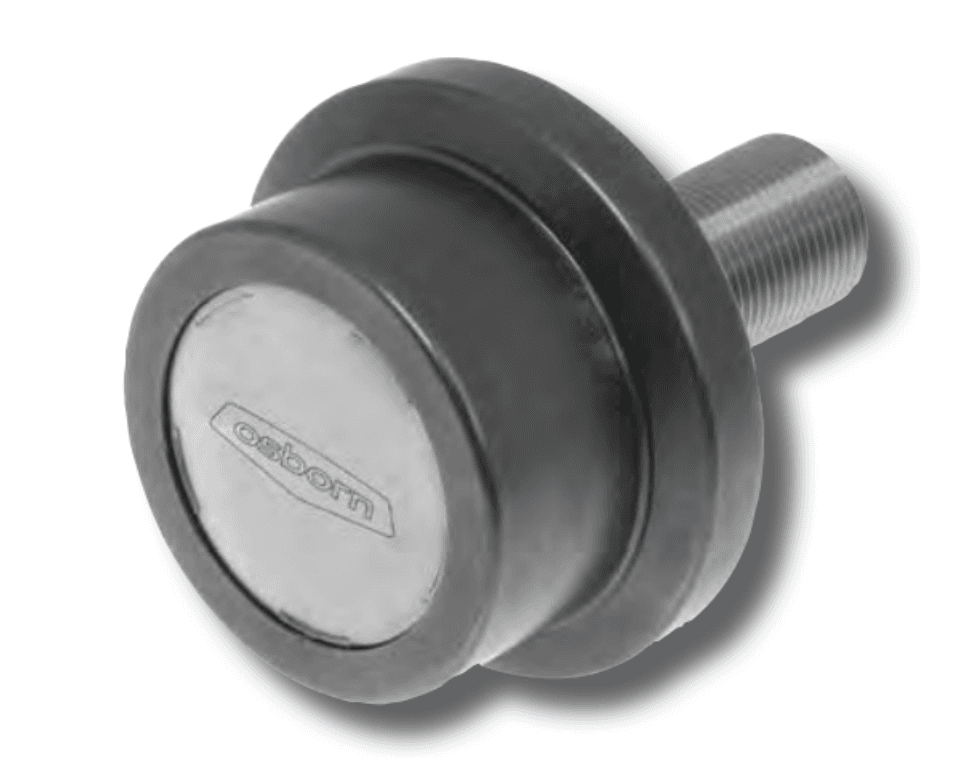

High Temp Load Runners Concentric Flanged (Inch)
OSBORN High Temp Load Runners concentric Flanged Style (Inch) load runner consists of items such as FLRH-1, FLRH-1-1/4, FLRH-1-1/2, FLRH-2, FLRH-2-1/2.
High Temp Load Runners Concentric Flanged (Inch)
OSBORN High Temp Load Runners concentric Flanged Style (Inch) load runner consists of items such as FLRH-1, FLRH-1-1/4, FLRH-1-1/2, FLRH-2, FLRH-2-1/2.

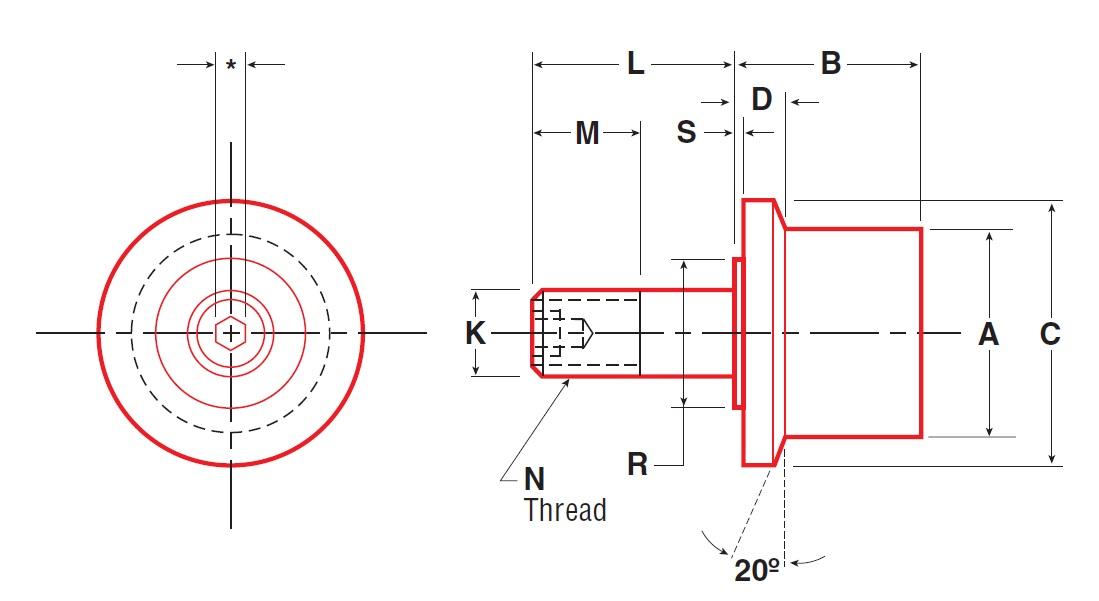

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 1 inch | 2.5 inch |
| Roller Width | 0.781 inch | 1.688 inch |
| Flange Diameter | 1.375 inch | 3.188 inch |
| Flange Thickness | 0.219 inch | 0.593 inch |
| Stud Diameter | 0.437 inch | 1 inch |
| Stud Length | 1 inch | 2.25 inch |
| Radial Load static limit | 390 lbs | 1750 lbs |
| Static Thrust | 240 lbs | 1080 lbs |
Industries
| Paper Manufacturing |
| Steel & Aluminum Manufacturer |
| Foundries |
| Food Processing |
| Aerospace |
