High Temp Load Runners Concentric V-grooved (Inch)
OSBORN High Temp Load Runners concentric V Grooved (inch) load runner consists of items such as VLRH-1-1/2, VLRH-2, VLRH-2-1/2.
High Temp Load Runners Concentric V-grooved (Inch)
OSBORN High Temp Load Runners concentric V Grooved (inch) load runner consists of items such as VLRH-1-1/2, VLRH-2, VLRH-2-1/2.

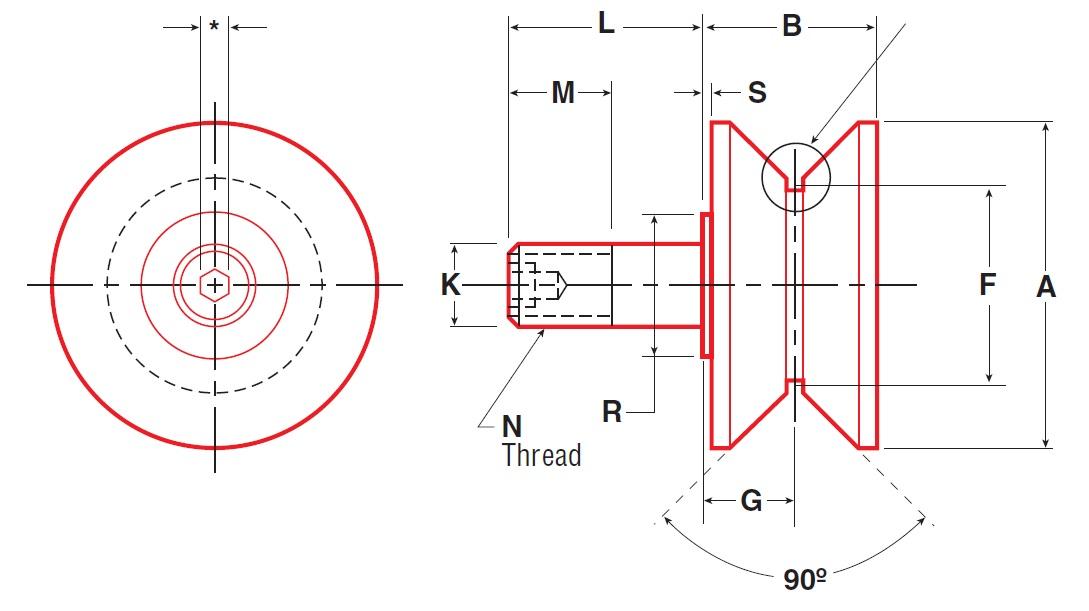

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 1.5 inch | |
| Roller Width | 0.781 inch | |
| Point Diameter | 1.125 inch | |
| Groove Location | 0.391 inch | |
| Stud Diameter | 0.437 inch | |
| Stud Length | 1 inch | |
| Radial Load static limit | 390 lbs | |
| Static Thrust | 240 lbs |
Industries
| Paper Manufacturing |
| Steel & Aluminium Manufacturer |
| Foundries |
| Food Processing |
| Aerospace |
