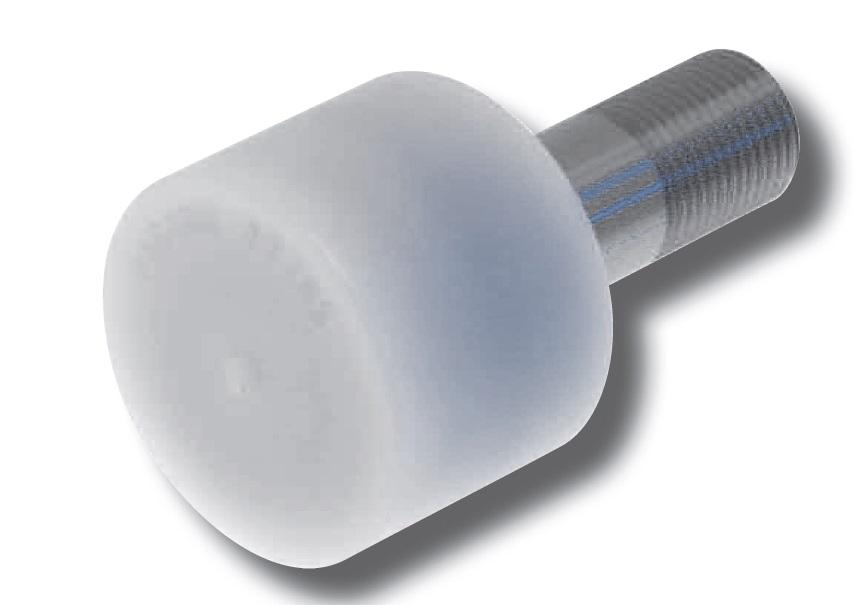

Nylon Tread Load Runners – Eccentric Stud Style (Inch)

OSBORN Nylon Tread Load Runners - Eccentric Stud Style (Inch) consist of items such as PLRNE-1, PLRNE-1-1/4, PLRNE-1-1/2, PLRNE-2, PLRNE-2-1/2.

Nylon Tread Load Runners – Eccentric Stud Style (Inch)
Nylon Tread Load Runners – Eccentric Stud Style (Inch)
Nylon Tread Load Runners – Eccentric Stud Style (Inch)

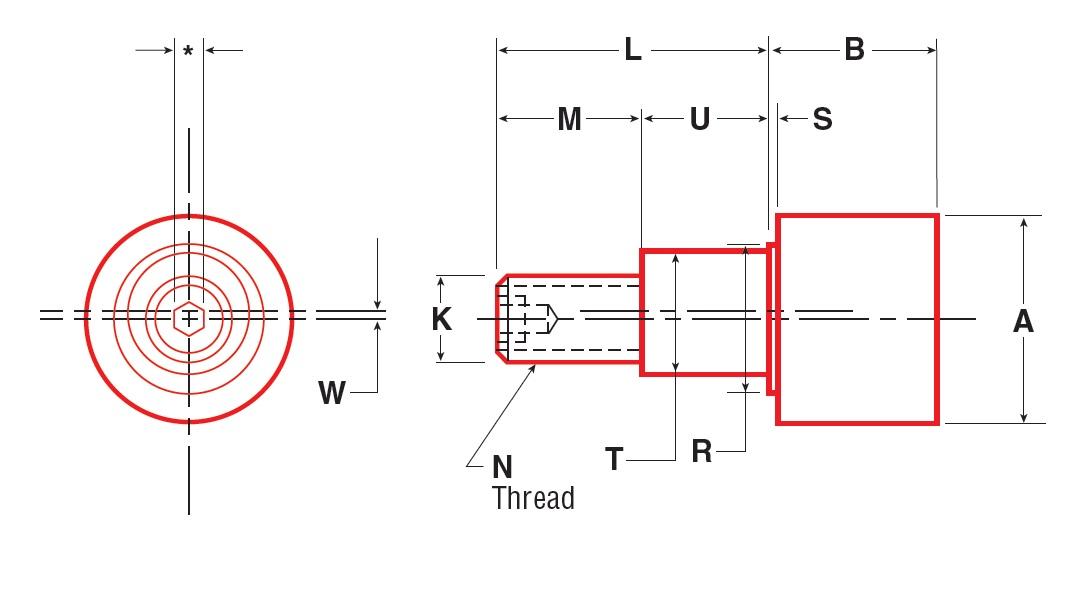

ParametersMinMax
Roller Diameter 1 inch 2.5 inch
Roller Width 781 inch 1.687 inch
Stud Diameter 0.437 inch 1 inch
Stud Length 1 inch 2.25 inch
Radial Load static Limit230 lbs 2270 lbs
Static Thrust 140 lbs1400 lbs
Industries
Racking & Storage Retrival Systems
Food Processing
Postal Systems
Medical Equipment
