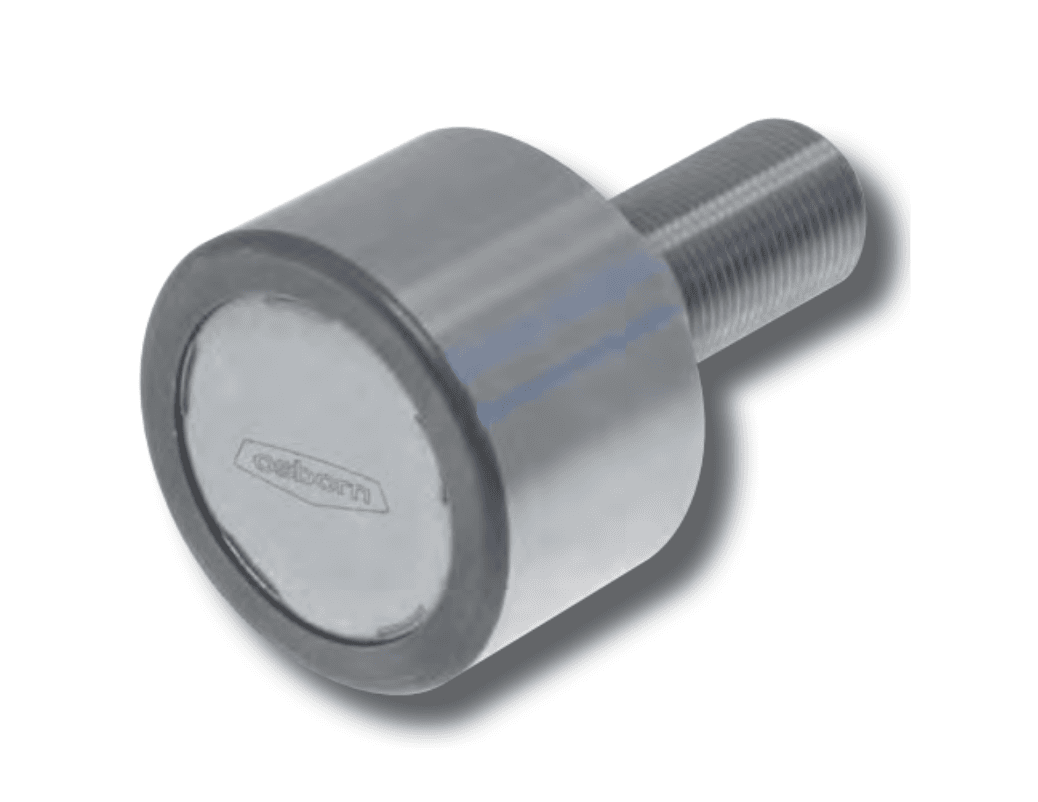

Plain Concentric Stud Style (Inch)
Osborn Plain Concentric Stud style(Inch Series) load runner consist of items such as PLR-1, PLR-1-1/8, PLR-1-1/4, PLR-1-3/8, PLR-1-1/2, PLR-1-3/4, PLR-1-3/4-5, PLR-2, PLR-2-3, PLR-2-1/4, PLR-2-1/2, PLR-2-1/2-10, PLR-2-1/2-16, PLR-2-3/4, PLR-3, PLR-3-1/4, PLR-3-1/2, PLR-4, PLR-4-1/2, PLR-5, PLR-6, PLR-7, PLR-8, PLR-10, PLR-10-1.
Plain Concentric Stud Style (Inch)
Osborn Plain Concentric Stud style(Inch Series) load runner consist of items such as PLR-1, PLR-1-1/8, PLR-1-1/4, PLR-1-3/8, PLR-1-1/2, PLR-1-3/4, PLR-1-3/4-5, PLR-2, PLR-2-3, PLR-2-1/4, PLR-2-1/2, PLR-2-1/2-10, PLR-2-1/2-16, PLR-2-3/4, PLR-3, PLR-3-1/4, PLR-3-1/2, PLR-4, PLR-4-1/2, PLR-5, PLR-6, PLR-7, PLR-8, PLR-10, PLR-10-1.
Ex-Stock Availability
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 1 inch | 10 inch |
| Roller Width | 0.781 inch | 5 inch |
| Stud Diameter | 0.437 inch | 4.250 inch |
| Stud Length | 1 inch | 9 inch |
| Radial Load Static Limit | 230 lbs | 159800 lbs |
| Static Thrust | 140 lbs | 116000 lbs |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
