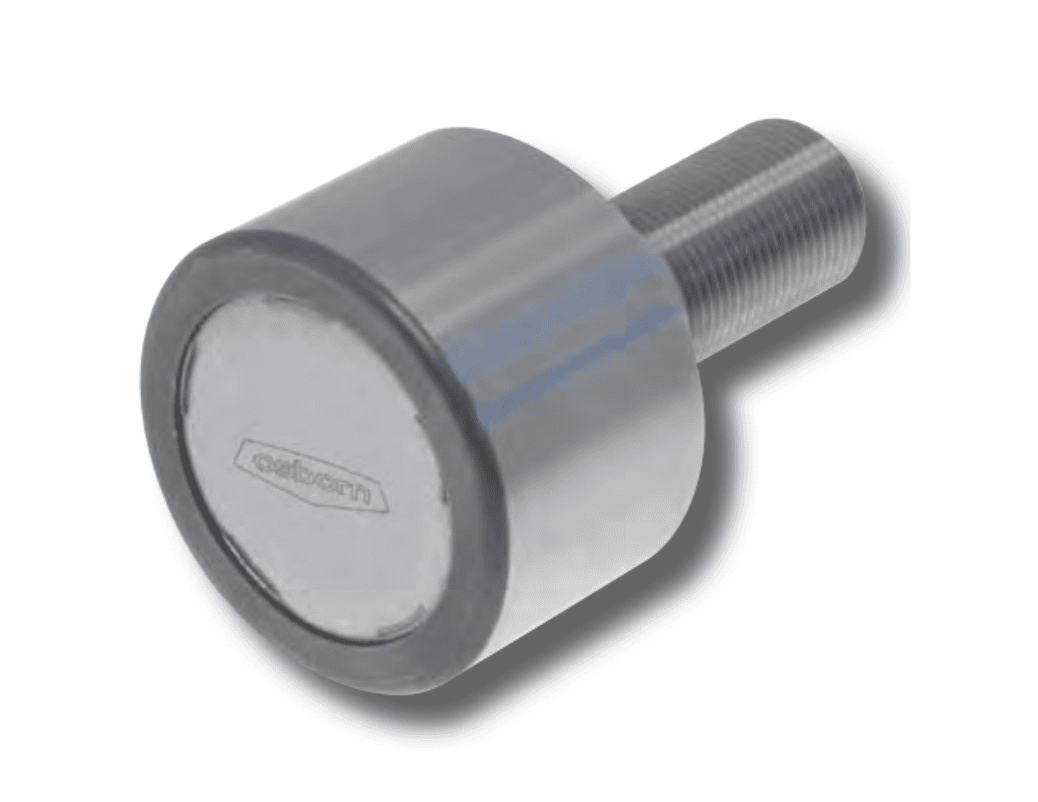

Plain Concentric Stud Style (metric)
OSBORN Plain Concentric Stud Style(metric) load runner consist of items such as HPC-26, HPC-30, HPC-32, HPC-35, HPC-40, HPC-40-1, HPC-47, HPC-50, HPC-52, HPC-62, HPC-62-1, HPC-72, HPC-76, HPC-80, HPC-85, HPC-90, HPC-100, HPC-100-1, HPC-125, HPC-150, HPC-200.
Plain Concentric Stud Style (metric)
OSBORN Plain Concentric Stud Style(metric) load runner consist of items such as HPC-26, HPC-30, HPC-32, HPC-35, HPC-40, HPC-40-1, HPC-47, HPC-50, HPC-52, HPC-62, HPC-62-1, HPC-72, HPC-76, HPC-80, HPC-85, HPC-90, HPC-100, HPC-100-1, HPC-125, HPC-150, HPC-200.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 26 mm | 200 mm |
| Roller Width | 20 mm | 76 mm |
| Stud Diameter | 10 mm | 64 mm |
| Stud Length | 23 mm | 140 mm |
| Radial Load Static Limit | 1000 N | 250880 N |
| Static Thrust | 620 N | 147240 N |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
