Stainless Steel Concentric Stud Flanged (Inch)

OSBORN Stainless Steel Concentric Stud Flanged (Inch) load runner consists of items such as FLRS-1, FLRS-1-1/4, FLRS-1-1/2, FLRS-2, FLRS-2-1/2.

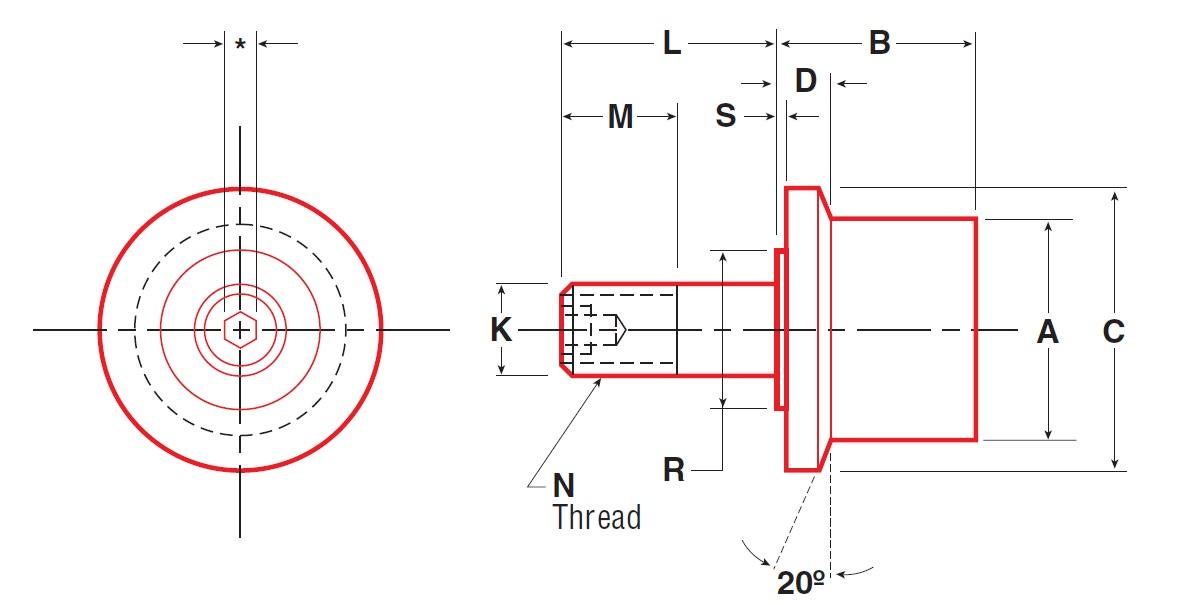

Flanged Concentric Stud Style(inch)-dig (1).jpg
Flanged Concentric Stud Style(inch)-dig (1).jpg

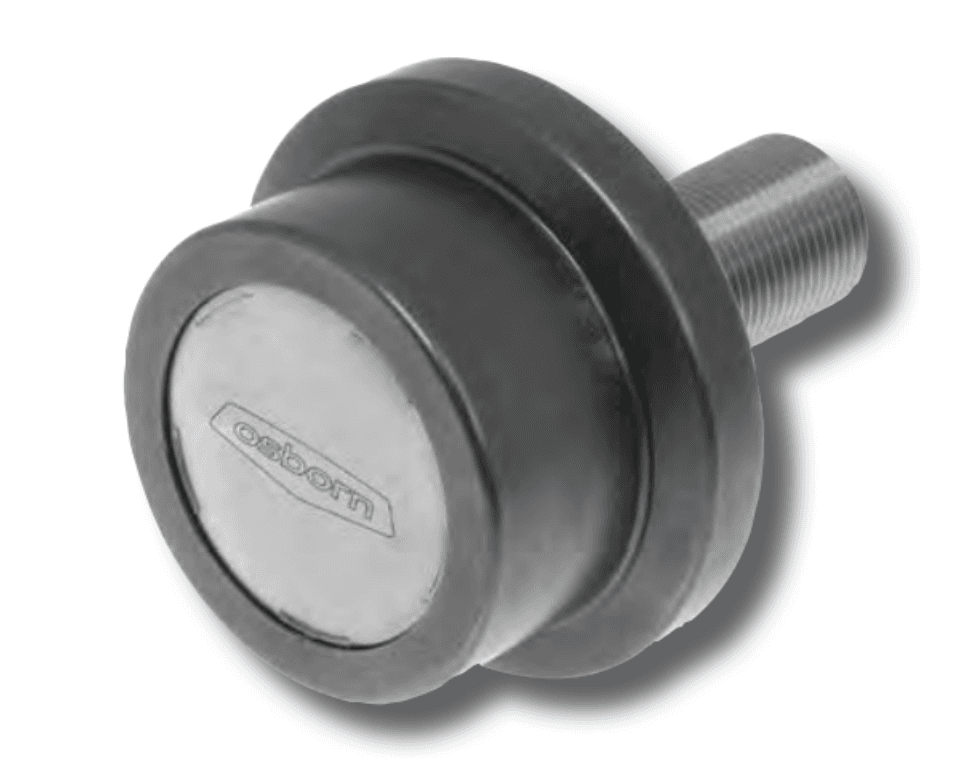

Flanged Concentric Stud Style(inch) (1).png
ParametersMinMax
Roller Diameter 1 inch 2.5 inch
Roller Width 0.781 inch 1.688 inch
Flange Diameter 1.375 inch 3.188 inch
Flange Thickness 0.219 inch 0.593 inch
Stud Diameter 0.437 inch 1 inch
Stud Length 1 inch 2.25 inch
Radial Load static limit390 lbs1750 lbs
Static Thrust240 lbs1080 lbs
Industries
Chemical Treatment
Tank Building
Food Processing
Aerospace
Marine
Waste Treatment
Pharma Plant & Equipment Manufacturer
