Stainless Steel Concentric Stud Plain Style (Inch)

OSBORN Stainless Steel Concentric Stud Plain Style(inch) load runner consists of items such as PLRS-1, PLRS-1-1/4, PLRS-1-1/2, PLRS-1-3/4, PLRS-2, PLRS-2-1/2.

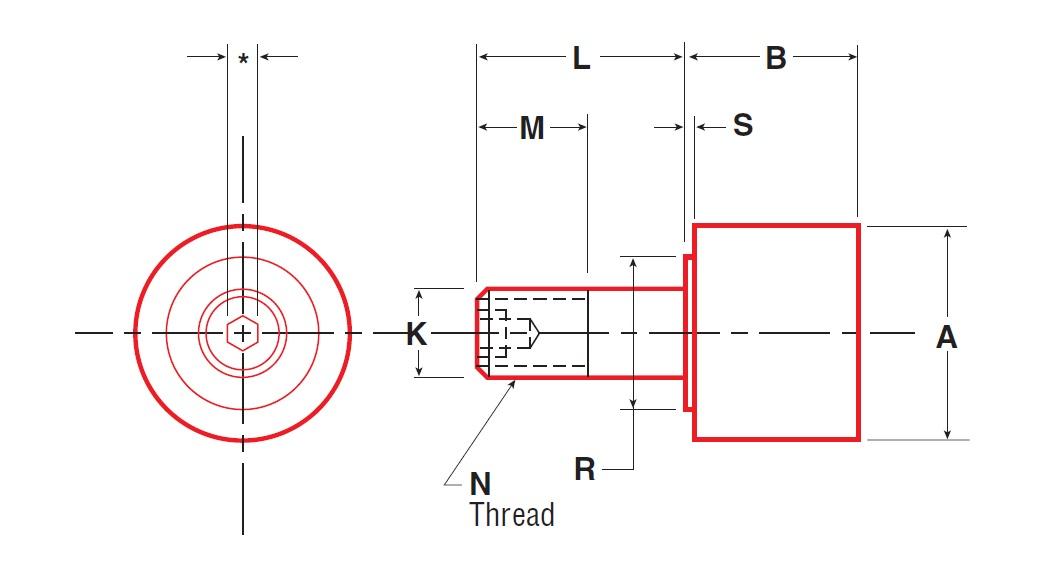

Stainless Steel Concentric Stud Plain Style(inch)-dig.jpg
Stainless Steel Concentric Stud Plain Style(inch)-dig.jpg
Plain Concentric Stud Style(inch).png
ParametersMinMax
Roller Diameter 1 inch 2.5 inch
Roller Width 0.781 inch 1.687 inch
Stud Diameter0.437 inch 1 inch
Stud Length 1 inch 2.25 inch
Radial Load Static Limit 390 lbs 1750 lbs
Static Thrust240 lbs1080 lbs
Industries
Chemical Treatment
Tank Building
Food Processing
Aerospace
Marine
Waste Treatment
Pharma Plant & Equipment Manufacturer
