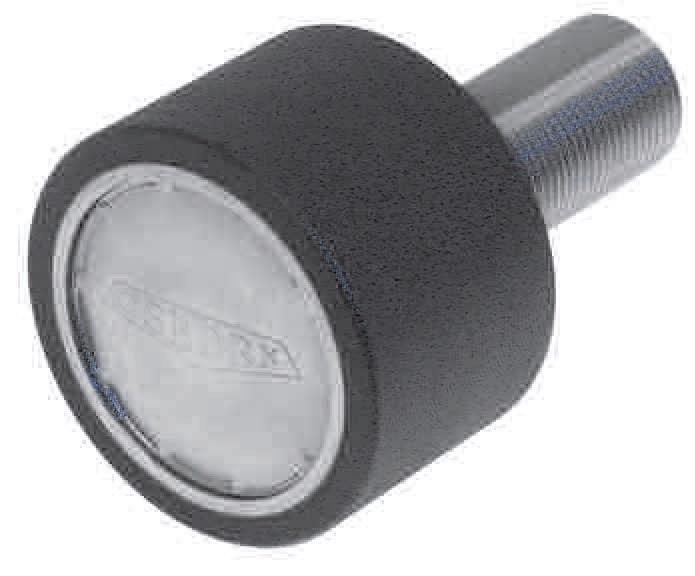

Urethane Tread Eccentric (Inch)
OSBORN Urethane Tread Eccentric (Inch) load runner consist of items such as PLRUE-1, PLRUE-1-1/8, PLRUE-1-1/4, PLRUE-1-3/8, PLRUE-1-1/2, PLRUE-1-3/4, PLRUE-2, PLRUE-2-1/4, PLRUE-2-1/2, PLRUE-2-3/4.
Urethane Tread Eccentric (Inch)
OSBORN Urethane Tread Eccentric (Inch) load runner consist of items such as PLRUE-1, PLRUE-1-1/8, PLRUE-1-1/4, PLRUE-1-3/8, PLRUE-1-1/2, PLRUE-1-3/4, PLRUE-2, PLRUE-2-1/4, PLRUE-2-1/2, PLRUE-2-3/4.

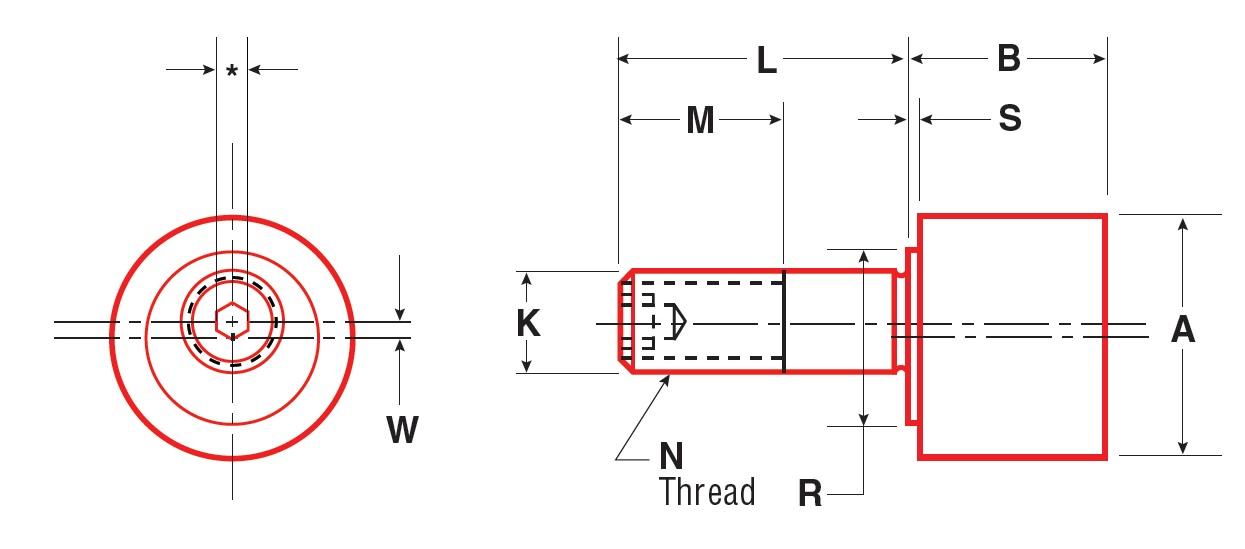

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 1 inch | 2.75 inch |
| Roller Width | 0.781 inch | 1.687 inch |
| Stud Diameter | 0.437 inch | 1 inch |
| Stud Length | 1 inch | 2.25 inch |
| Radial Capacity | 230 lbs | 1980 lbs |
| Tread Capacity | 80 lbs | 420 lbs |
| Tread Speed Limit | 300 RPM | 850 RPM |
Industries
| Medical Equipment |
| Construction Sites |
| Postage Systems |
