Product Information

V-Grooved Concentric Stud Style (Metric)

OSBORN V-Grooved Concentric Stud Style(metric) load runner consist of items such as HPV-26, HPV-32, HPV-40, HPV-62, HPV-62-1, HPV-76, HPV-100, HPV-100-1, HPV-125.

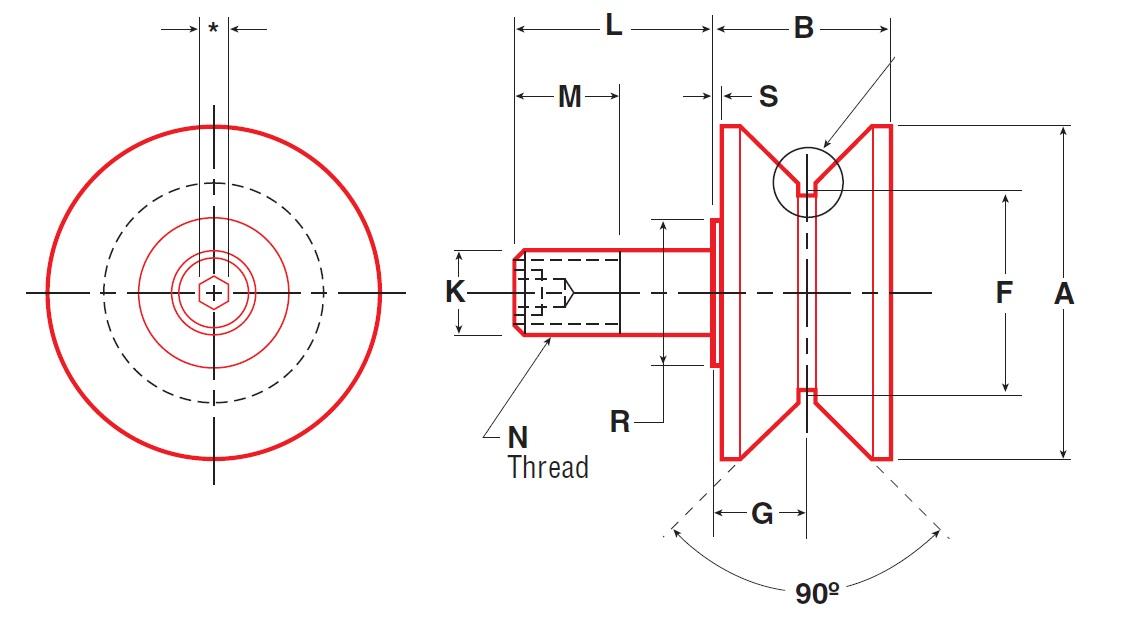

V-Grooved Concentric Stud Style(metric)-dig (1).jpg
V-Grooved Concentric Stud Style(metric)-dig (1).jpg

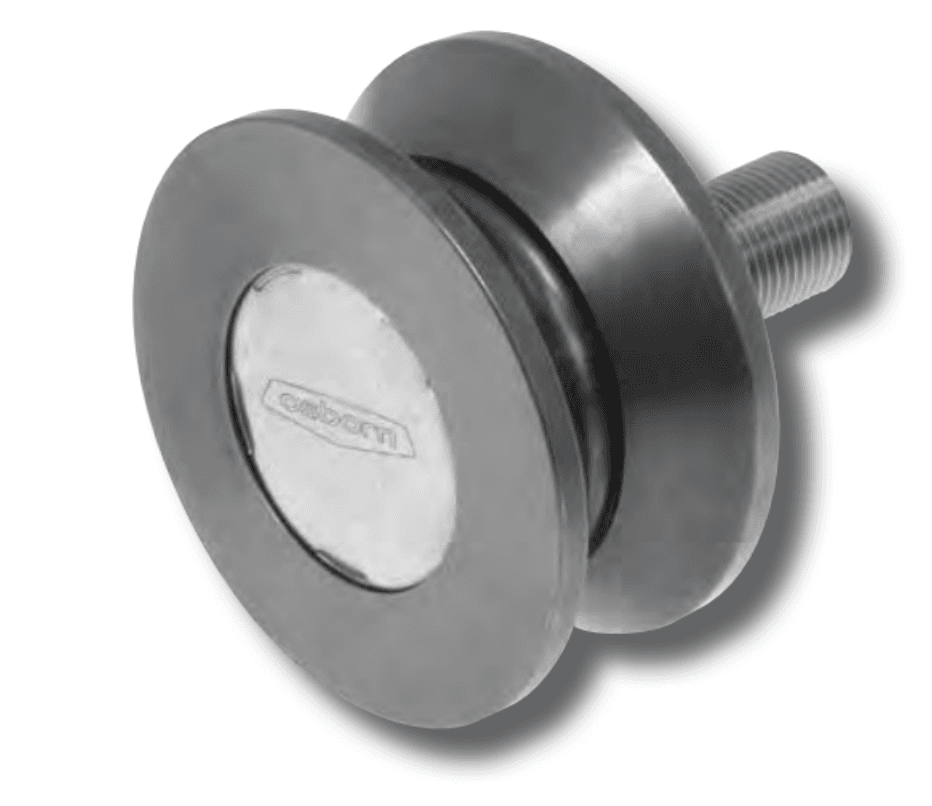

V-grooved Concentric Stud style(metric) (1).png
ParametersMinMax
Roller Diameter 40mm165mm
Roller Width 20mm76mm
Point Diameter 26mm125mm
Groove Location10mm37.8mm
Stud Diameter 10mm48mm
Stud Length23mm105mm
Radial Load static limit1000N216290N
Static Thrust 620N108140N
Industries
Steel & Aluminium Manufacturer
Oil, Gas Exploration & Refinery
Automobile Manufacturer
Off-Highway
Mining
Kinetic Architecture
Food and Pharmaceutical
