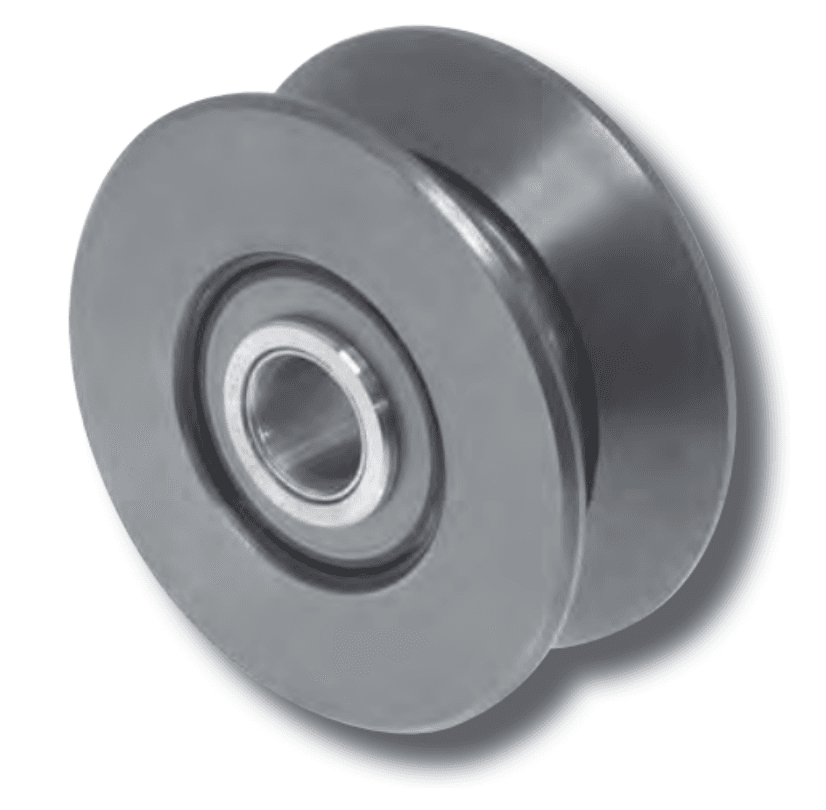

V-Grooved Yoke Style (Inch)
OSBORN V-Grooved Yoke Style(inch) load runner consist of items such as VLRY-2-1/2, VLRY-3, VLRY-3-1/2-7, VLRY-3-3/4, VLRY-4-1/2, VLRY-5, VLRY-5-1/2, VLRY-6-1/2, VLRY-7-1/2, VLRY-8-1/2, VLRY-9-1/2, VLRY-10-1/2, VLRY-11-1/2.
V-Grooved Yoke Style (Inch)
OSBORN V-Grooved Yoke Style(inch) load runner consist of items such as VLRY-2-1/2, VLRY-3, VLRY-3-1/2-7, VLRY-3-3/4, VLRY-4-1/2, VLRY-5, VLRY-5-1/2, VLRY-6-1/2, VLRY-7-1/2, VLRY-8-1/2, VLRY-9-1/2, VLRY-10-1/2, VLRY-11-1/2.

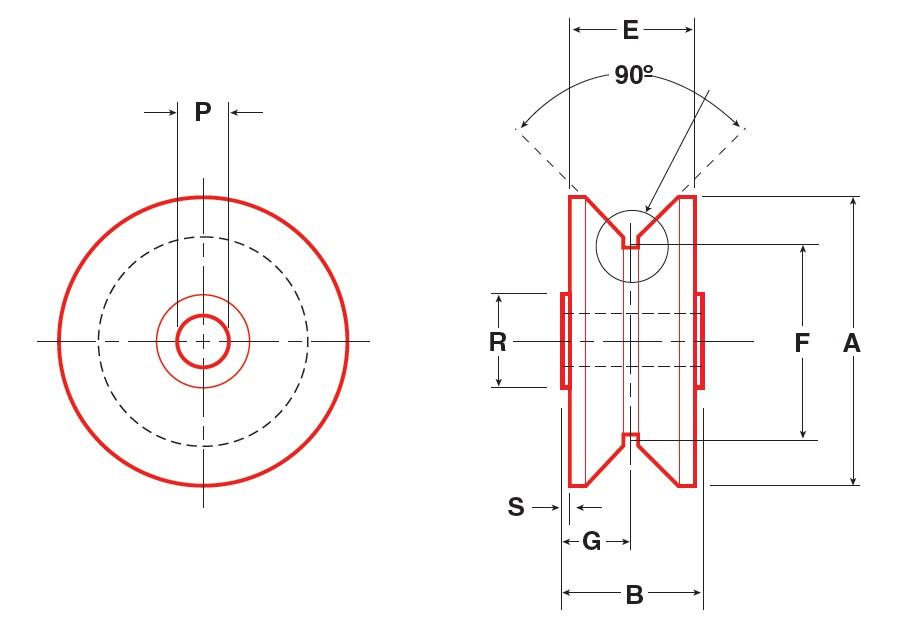

Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 40mm | 165mm |
| Roller Width | 20mm | 76mm |
| Point Diameter | 26mm | 125mm |
| Groove Location | 10mm | 37.8mm |
| Stud Diameter | 10mm | 48mm |
| Stud Length | 23mm | 105mm |
| Radial Load static limit | 1000N | 216290N |
| Static Thrust | 620N | 108140N |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
