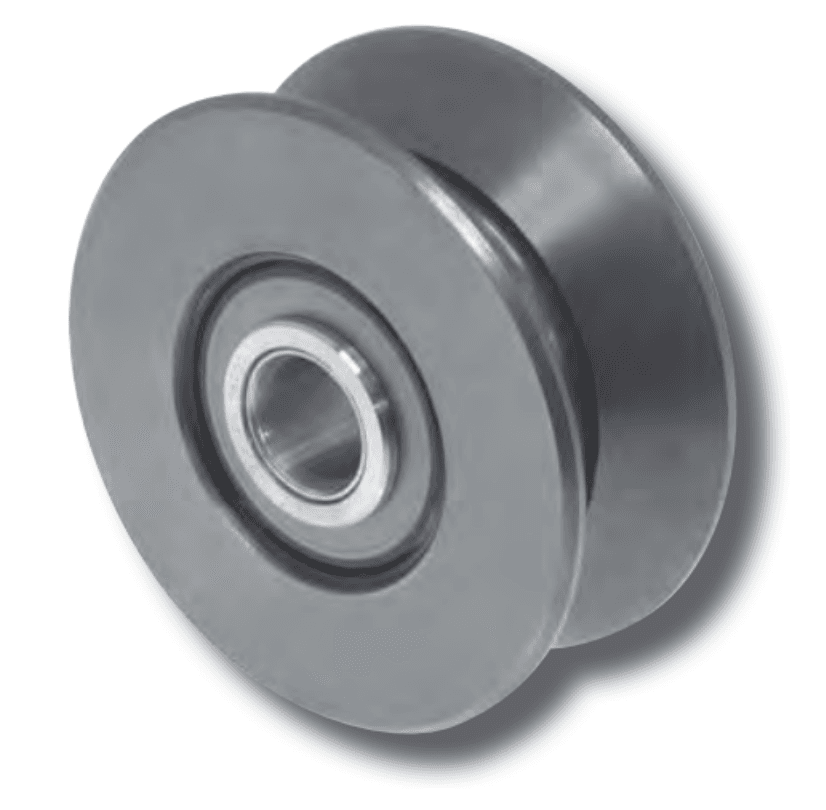

V-Grooved Yoke Style (Metric)
OSBORN V-Grooved Yoke Style(metric) load runner consist of items such as HPVA-40, HPVA-50, HPVA-62, HPVA-62-2, HPVA-76, HPVA-100, HPVA-125, HPVA-150, HPVA-200, HPVA-250.
V-Grooved Yoke Style (Metric)
OSBORN V-Grooved Yoke Style(metric) load runner consist of items such as HPVA-40, HPVA-50, HPVA-62, HPVA-62-2, HPVA-76, HPVA-100, HPVA-125, HPVA-150, HPVA-200, HPVA-250.
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Roller Diameter | 60mm | 292mm |
| Roller Width | 23mm | 79mm |
| Tread width | 22mm | 76mm |
| Point Diameter | 40mm | 250mm |
| Groove location | 11.5mm | 39.5mm |
| Bore | 10mm | 70mm |
| Shoulder diameter | 22mm | 108mm |
| Shoulder length | 0.5mm | 1.5mm |
| Radial Load static limit | 3460N | 354970N |
| Static Thrust | 2140N | 199360N |
Industries
| Steel & Aluminium Manufacturer |
| Oil, Gas Exploration & Refinery |
| Automobile Manufacturer |
| Off-Highway |
| Mining |
| Kinetic Architecture |
| Food and Pharmaceutical |
