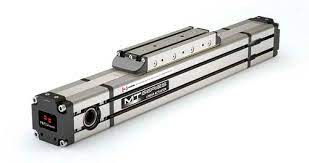

MTB Series Linear Actuator
The MTB Series Linear Actuator is designed for swift, heavy-load travel. Its steel-reinforced belt system ensures durability in motion. With a variable 60mm x 42mm to 104mm x 80mm cross-section, it handles up to 1,011 lbs (4,500 N) over 6,000mm (236.22 inches). Enclosed in robust aluminum, it balances strength and lightweight corrosion resistance, minimizing friction, noise, and vibration. This adaptable system allows adjustable belt tension and offers diverse drive configurations, ensuring smooth and efficient operation in fast, long-travel applications with heavy loads.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Size | 42x42 mm | 80x80 mm |
| Max. Load Fx, Fy, Fz | 460 N, 1560 N, 1560 N | 1650 N, 4500 N, 4500 N |
| Max. Moments Fx, Fy, Fz | 20 Nm, 55 Nm, 55 Nm | 80 Nm, 450 Nm, 450 Nm |
| Stroke Length | 100 mm | 6000 mm |
Variant Applications
| Machines / Applications |
|---|
| CNC |
| 3D Printer |
| Automotive Airbag Production |
| Woodworking Machinery |
| Silicon Wafer Manufacturing |
| Luxury Aircraft Interior Equipment |
| Stone Working |
| Large Format Printers |
| Automotive Design and Racing Equipment |
| Industries |
|---|
| Textile |
| Aerospace Engineering |
| Marine & Offshore Engineering |
| Packaging & Labeling |
| Carpet Manufacturing |
| Material Handling & Logistics |
| Woodworking |
| Carpentry |
| Beverage |
| Packaging |
| Brewing |
