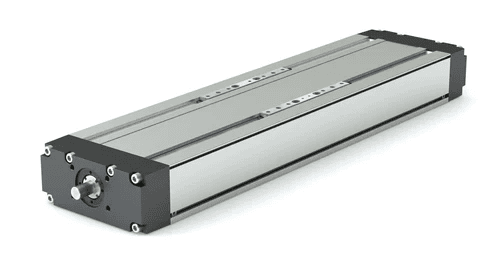

MUK Series Linear Actuator
The MUK Series Linear Actuator, driven by a precision ball screw, features two aligned recirculating ball profile rail guideways, ideal for high dynamic or moment loads. With a 65mm x 145mm cross-section, it handles up to 2,517 lbs (11,200 N) across a 1,500mm (59-inch) stroke. Offering single or dual carriage options, it ensures accuracy with a standard Class 7 ball screw (52 µm/300 mm), with custom options available. Its compact aluminum profile incorporates t-slots for sensor mounting, and a unique manifold lubrication system delivers lubrication without disassembly. Stainless steel scrapers seal out contaminants, ensuring durability in demanding applications.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Lead | 5 mm | 20 mm |
| Max. Load Fx, Fy, Fz | 1798 N , 8500 N, 8500 N | 3597 N, 11200 N, 11200 N |
| Max. Moments Fx, Fy, Fz | 550 Nm,350 Nm,350 Nm | 950 Nm, 1150 Nm,1150 Nm |
| Stroke Length | 125 mm | 1750 mm |
| Speed | 1 m/s | 79 m/s |
Variant Applications
| Machines / Applications |
|---|
| CNC |
| 3D Printer |
| Automotive Airbag Production |
| Woodworking Machinery |
| Silicon Wafer Manufacturing |
| Luxury Aircraft Interior Equipment |
| Stone Working |
| Large Format Printers |
| Automotive Design and Racing Equipment |
| Industries |
|---|
| Textile |
| Aerospace Engineering |
| Marine & Offshore Engineering |
| Packaging & Labeling |
| Carpet Manufacturing |
| Material Handling & Logistics |
| Woodworking |
| Carpentry |
| Beverage |
| Packaging |

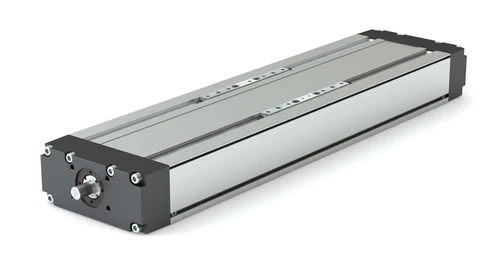

MUK Series Linear Actuator
