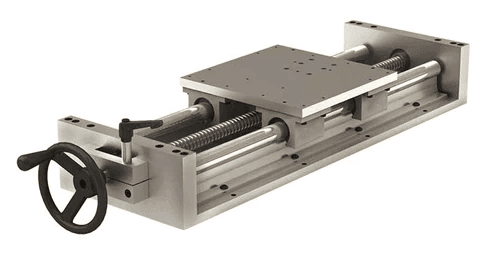

Simplicity Linear Slide Assemblies

The Simplicity Linear Slide Assemblies, integrating Simplicity® Plain Bearings, tackle hefty loads in rugged, contaminated environments. Spanning from 65mm x 153mm to 187mm x 457mm, they support a maximum horizontal payload of 18,750 lbs (83,400 N) over a 3,454mm (136-inch) stroke. Featuring direct drive NEMA 23 & 34 motor brackets and N42, 56, and 143 bracket options, they accommodate diverse configurations. Offering plain or ball bearings, with low and high profile systems, these assemblies provide versatility. Optional accessories include a hand crank with ball screw lock, rotational lock, and handwheel, enhancing operational adaptability and functionality in varied applications.
