Roller pillow block
The Roller Pillow Block excels with high load capacities, speed, and extended travel capabilities. Available in inch and metric sizes, it offers single, double, and twin roller block designs, incorporating aluminum and coated steel rollers. Its simplified installation and alignment, along with self-aligning and adjustable features, make it ideal for joined rail applications. With standard mounting holes and interchangeability with industry standards, it accommodates loads up to 12,500 pounds. This versatile, high-performance block ensures reliable operation in various settings, delivering efficiency and durability for demanding industrial needs.

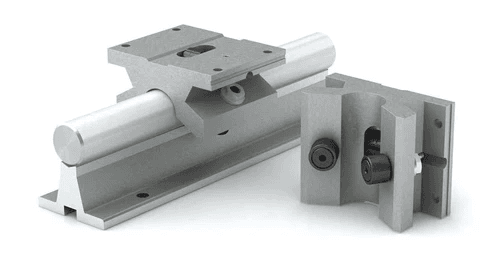

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Shaft diameter ( Imperial ) | 1/2 inch | 3 inch |
| Shaft diameter ( Metric ) | 16mm | 30m |
| Width (Imperial) | 2 inch | 8-3/8 inch |
| Width ( Metric ) | 38.1mm | 101.6 mm |
| Height ( Imperial ) | 1-5/32 inch | 5-1/2 inch |
| Height ( Metric ) | 15.08mm | 36.51mm |
| Dynamic load Imperial (lbs) | 400 lbs | 12520 lbs |
| Dynamic load Imperial (lbs) | 500 lbs | 2800 lbs |
Variant Applications
| Machines / Applications |
|---|
| Welding |
| Industrial Stop Gauge & Push Feed System |
| Robotic assembly lines |
| Automated packaging |
| Pipe Mill |
| Material handling |
| Printing presses |
| Wood cutting |
| Shaping |
| Harvesting equipment |
| Industries |
|---|
| Manufacturing |
| Industrial Automation |
| Material Handling |
| Logistics |
| Packaging |
| Printing |
| Automotive |
| Transportation |
| Woodworking manufacturing |
| Furniture Manufacturing |
| Mining |
| Construction |
| Agriculture |
