Integral-V Linear Guides

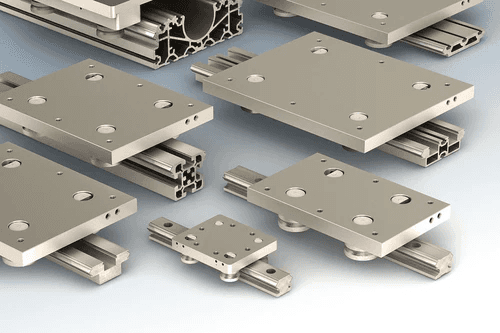

The Integral-V™ Linear Guides feature high-speed v-wheel cam rollers on precision-machined, anodized aluminum rails, reducing assembly time by eliminating mounting components. These guides embed hardened stainless-steel races in the aluminum rail, cutting fasteners by 40%. With rail lengths up to 3,650mm (143.4in), they handle speeds up to 10 m/s (393.7in/s) and endure temperatures from -4°F to +176°F (-20°C to +80°C). Ideal for contaminated environments and high-speed applications like gantry systems, printers, palletizers, and heavy-duty lifts, Integral-V™ offers efficiency, reduced assembly, and reliability in diverse demanding setups.
Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Radial Static Load | 1960 N | 8900 N |
| Axial Static Load | 1200 N | 5560 N |
| Radial Dyanmic Load | 2480 N | 10020 N |
| Axial Dynamic Load | 1490 N | 6150 N |
| Maximum Rail Length | 3048 mm | 3657 mm |
| Width of rail | 30 mm | 185.1 mm |
| Height Rail | 18 mm | 69 mm |
Variant Applications
| Machines / Applications |
|---|
| CNC Milling |
| Automated Assembly Systems |
| Robotic Arms |
| Precision Measurement Equipment |
| Semiconductor Manufacturing |
| Industries |
|---|
| Manufacturing |
| Industrial Automation |
| Electronics |
| Semiconductor |
| Medical |
| Healthcare |
| Aerospace |
| Defense |
