Lead Screws and Motor Assemblies
Precision-engineered for high torque, accuracy, and efficiency, PBC Linear lead screws and motor assemblies come in various sizes and leads. Crafted from durable 300 Series Stainless Steel with optional PTFE coating, they offer superior lead accuracy (0.003"/ft.), three times better than industry standards. Custom coating eliminates flaking, ensuring a high-quality finish. Available in NEMA 08/11/14/17/23 sizes, with captive and non-captive options, these assemblies are the ideal solution for applications demanding top-tier performance.

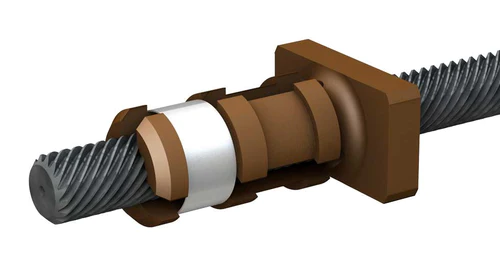

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Diameter (Imperial) | 3/16 inch | 1/2 inch |
| Diameter (Metric) | 6 mm | 16 mm |
| Lead (Imperial) | 0.050 inch | 1 inch |
| Lead (Metric) | 1 mm | 25 mm |
| Dynamic Load (lb) | 41 lb | 200 lb |
| Dynamic Load (N) | 302 N | 1040 N |
Variant Applications
| Machines / Applications |
|---|
| Medical Beds |
| Positioning of Print Heads |
| Conveyors |
| Packaging and Filling |
| Industries |
|---|
| 3D Printing |
| Medical |
| Material Handling |
| Packaging |
