3 Jaw Rotary Air Chuck
In order to hold and rotate workpieces, a 3-jaw rotary air chuck is utilized in machining. With the aid of pressurized air, its three jaws operate concurrently. It holds firmly and adapts to different shapes. In CNC machining, it is effective, adaptable, and often used.

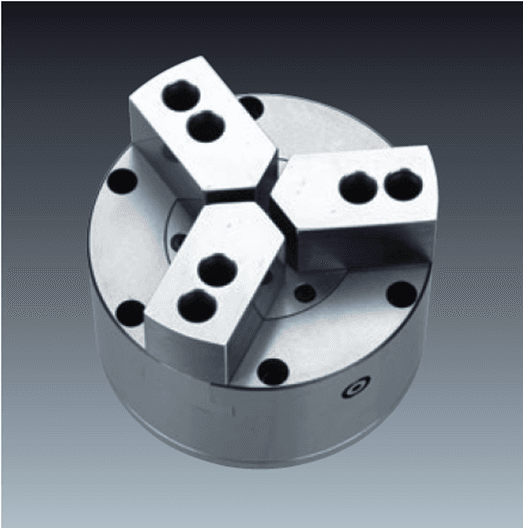

Variant Image

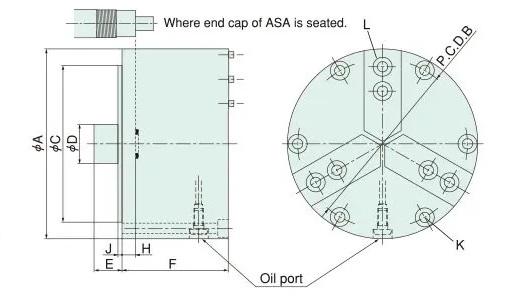

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Weight | 2kg | 27kg |
| Gripping force | 4.2kN | 32kN |
| Chucking cap. OD | 3-73mm | 16-233mm |
| Chucking cap. ID | 6-73mm | 16-233mm |
Variant Applications
| Machines / Applications |
|---|
| CNC turning centers |
| CNC milling |
| Lapping |
| Honing |
| Inspection |
| Industries |
|---|
| Automotive |
| Electronic |
| Robotics |
