4 Jaw Rotary Air Chuck
Workpieces are held and rotated during milling by a 4-jaw rotary air chuck. It provides adaptability for a variety of forms and holds eccentric workpieces. Allows for versatile and safe holding for precision cutting.
Variant Image

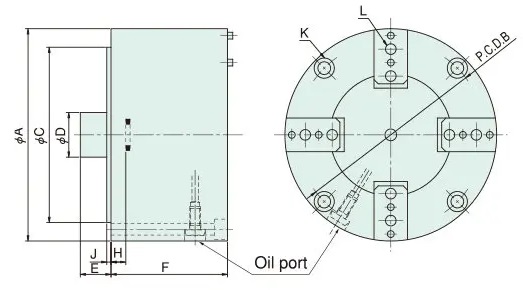

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Weight | 2.7kg | 8.1kg |
| Gripping force | 6.6kN | 9.7kN |
| Chucking cap. OD | 3-95mm | 3-135mm |
| Chucking cap. ID | 6-99mm | 10-135mm |
Variant Applications
| Machines / Applications |
|---|
| CNC turning centers |
| CNC milling |
| Lapping |
| Honing |
| Inspection |
| Industries |
|---|
| Automotive |
| Electronic |
| Robotics |
