Stationery Air Chuck
The workpiece is held firmly in position throughout the machining processes using a stationary air chuck. Limiting movement while machining operations are being carried out, assures stability and accuracy, resulting in accurate and reliable outcomes.

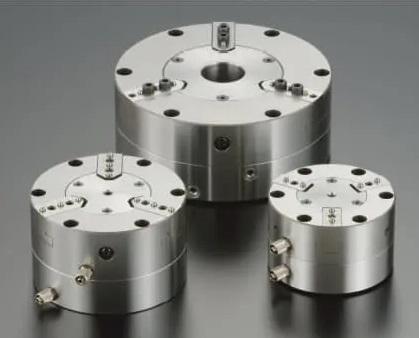

Variant Image

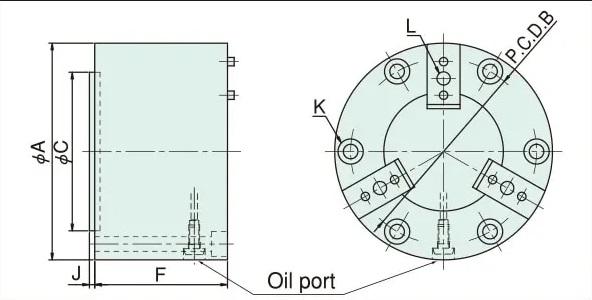

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Weight | 0.9kg | 7kg |
| Gripping force | 1.5kN | 10.4kN |
| Chucking cap. OD | 3-54mm | 3-135mm |
| Chucking cap. ID | 6-54mm | 10-135mm |
Variant Applications
| Machines / Applications |
|---|
| CNC turning centers |
| CNC milling |
| Lapping |
| Inspection |
| Honing |
| Industries |
|---|
| Automotive |
| Electronic |
| Robotics |
