ATEX
The POSITAL Incremental Encoder ATEX Type is designed for use in explosive or hazardous environments, adhering to strict ATEX and IECEx standards. These encoders provide reliable rotary motion feedback with high resolution, making them ideal for industries such as oil & gas, chemical processing, and mining. Featuring robust construction, they ensure durability under extreme conditions, including temperature variations and exposure to harsh substances.

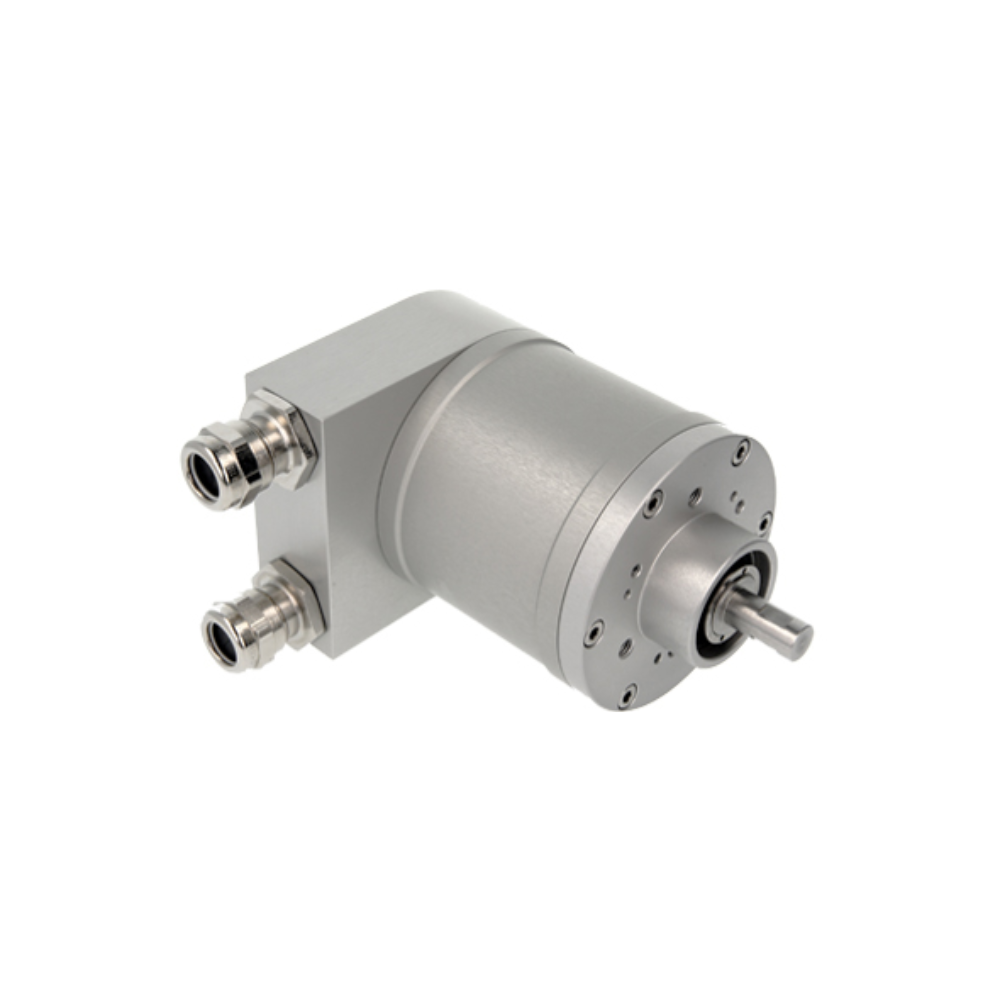

Variant Image
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Incremental Interface | - | HTL/TTL |
| Connection Type | - | Connection Cap(2 x Blind Plug, Axial/2 x Blind Plug, Radial) |
| Pin Assignment | - | A, B, Z, /A, /B, /Z |
| Protection Class | - | IP64 / IP65,IP67 |
| Material | - | Aluminum / Steel,Stainless Steel(V4A (1.4404, 316 L)) |
| Flange Design | - | Blind Hollow Shaft(BC ø 100-164 mm), |
| Flange size | - | ø 78 mm (3.07") |
| Shaft Diameter | - | ø 10 mm (0.39"),ø 14 mm (0.55") |
| Certificate | - | CE / UL, Haz Loc |
| Supply Voltage | - | 4.75-30 VDC |
Variant Applications
| Machines / Applications |
|---|
| Oil & Gas |
| Chemical Processing |
| Mining |
| Pharmaceutical Manufacturing |
| Industries |
|---|
| Oil &Gas industry |
| Chemical Industry |
| Mining Industry |
| Pharmaceutical Industry |
| Power Generation Industry |
