Rollon Smart System
The Smart System is a highly cost-effective linear unit. It has high load capacity, low noise and friction, and high speed. It is available with a fixed carriage and movable profile.

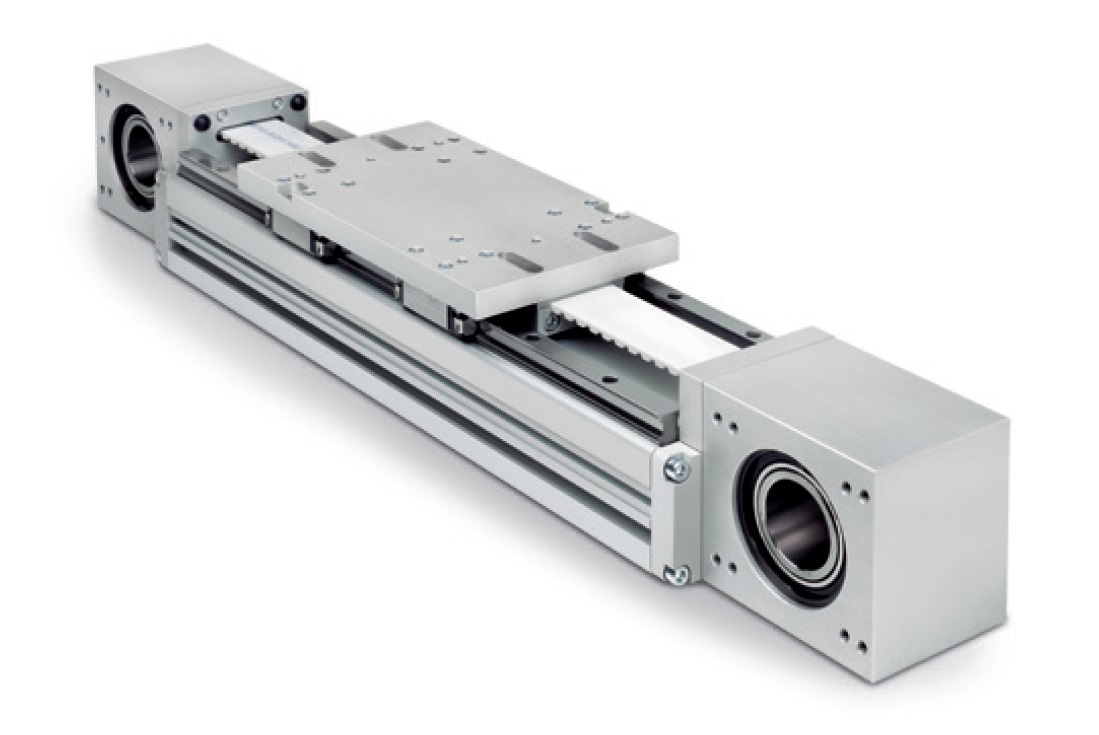

Variant Image

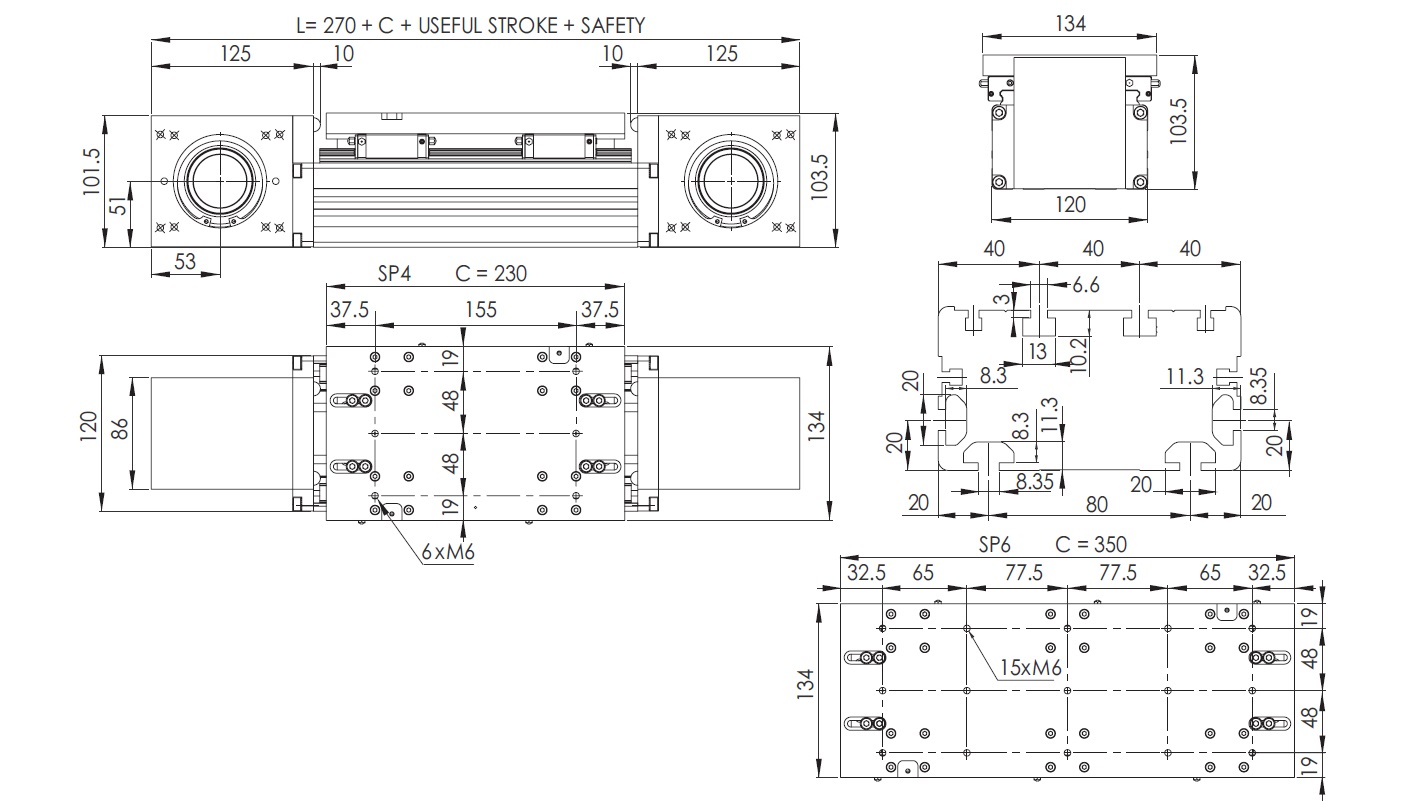

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Stroke Length | 2000 mm | 6145 mm |
| Operating Speed | - | 4 m/s |
| Acceleration | - | 50 m/s² |
Variant Applications
| Machines / Applications |
|---|
| Miniload Stacker Crane |
| Water Bundle |
| Packaging Machines |
| Industries |
|---|
| Automobile Manufacturer |
| Packaging Equipment Manufacturer |
| Material Handling Equipment Manufacturer |
Rollon Smart System
The Smart System is a highly cost-effective linear unit. It has high load capacity, low noise and friction, and high speed. It is available with a fixed carriage and movable profile.
Variant Image

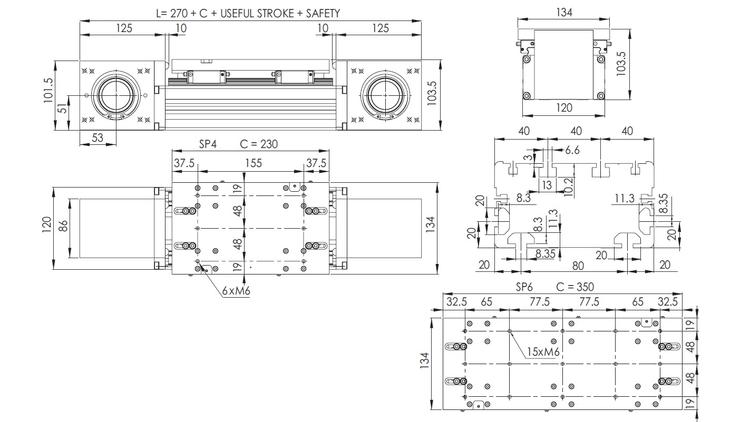

Variant Diagram
