Rollon Compact Rail
The Compact Rail has features like corrosion resistant surface, protection from dirt due to internal tracks, hardened and ground raceways etc.
This system is quieter than recirculating ball systems. High operating speeds, wide temperature range and easy adjustment of the slider in the guide rail makes it a reliable product.

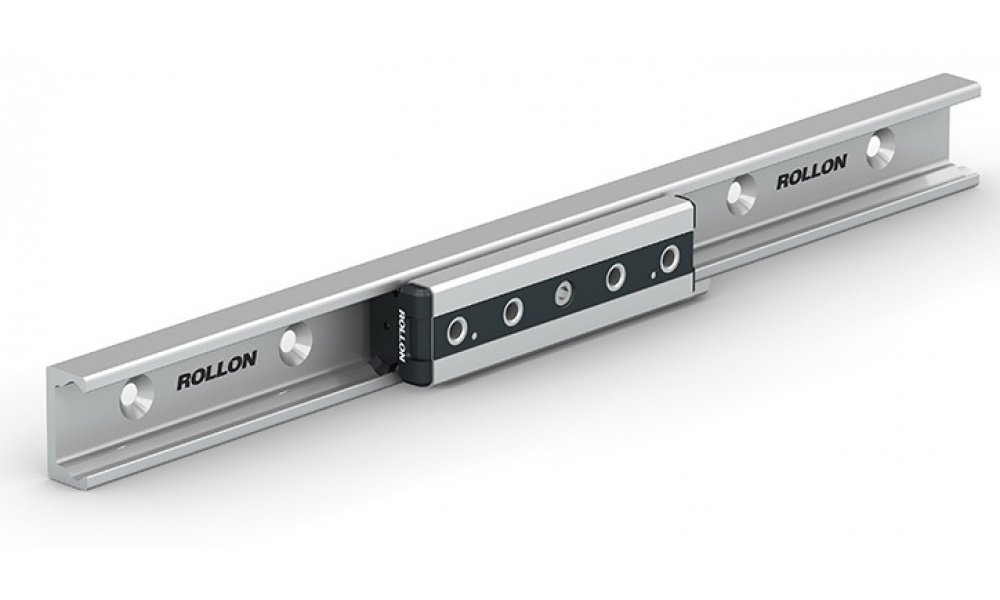

Variant Image

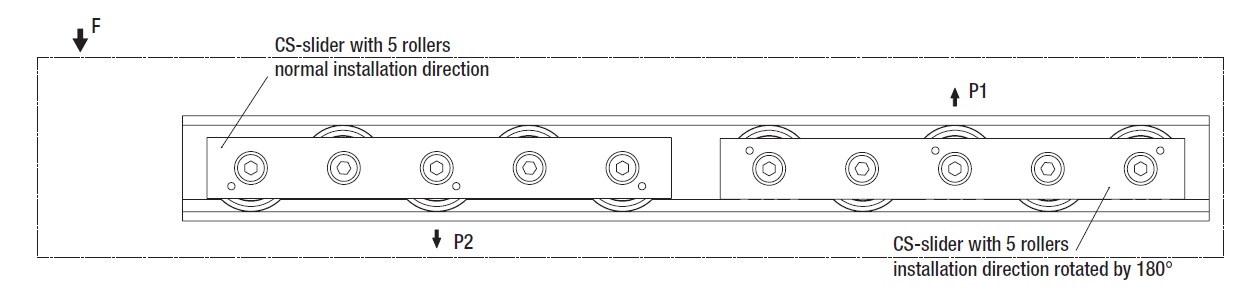

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Available Rail Lengths | 160 mm | 3,600 mm |
| Radial Load Capacity | - | 15000 N |
| Operating Speed | - | 9 m/s |
| Acceleration | - | 20 m/s2 |
| Temperature Range | -20 °C | 120 °C |
Variant Applications
| Machines / Applications |
|---|
| Cutting Machines |
| Packaging Machines |
| Photographic Lighting Equipment |
| Robots and Manipulators |
| Industries |
|---|
| Machine Tool Manufacturer |
| Material Handling Equipment Manufacturer |
| Automation Equipment Manufacturer |
