Rollon Curviline
The Curviline guide rails can have straight and curved sections in one continuous rail. Sliders with four rollers are arranged in pairs to maintain the preload over the entire rail length. This is also available in stainless steel. Custom production according to the requirement of customer is possible.

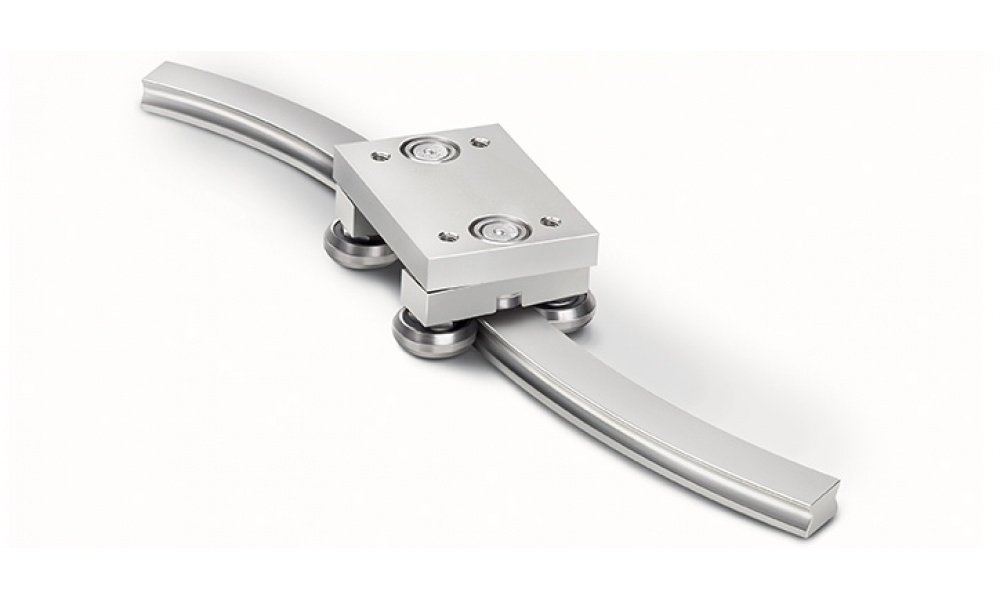

Variant Image

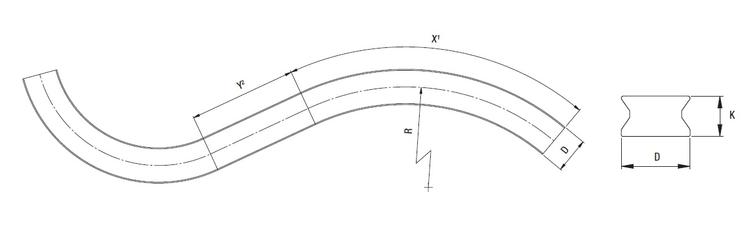

Variant Diagram
Selection Parameters
| Parameters | Min | Max |
|---|---|---|
| Effective Length of the Rail | - | 3240 mm |
| Radial Load Capacity | 570 N | 2475 N |
| Axial Load Capacity | 400 N | 1459 N |
| Operating Speed | - | 1.5 m/s |
| Acceleration | - | |
| Temperature Range | -20 °C |
Variant Applications
| Machines / Applications |
|---|
| Packaging Machines |
| Railway Car Interior Doors |
| Industries |
|---|
| Packaging Equipment Manufacturer |
| Automobile Manufacturer |
Rollon Curviline
The Curviline guide rails can have straight and curved sections in one continuous rail. Sliders with four rollers are arranged in pairs to maintain the preload over the entire rail length. This is also available in stainless steel. Custom production according to the requirement of customer is possible.
Variant Image

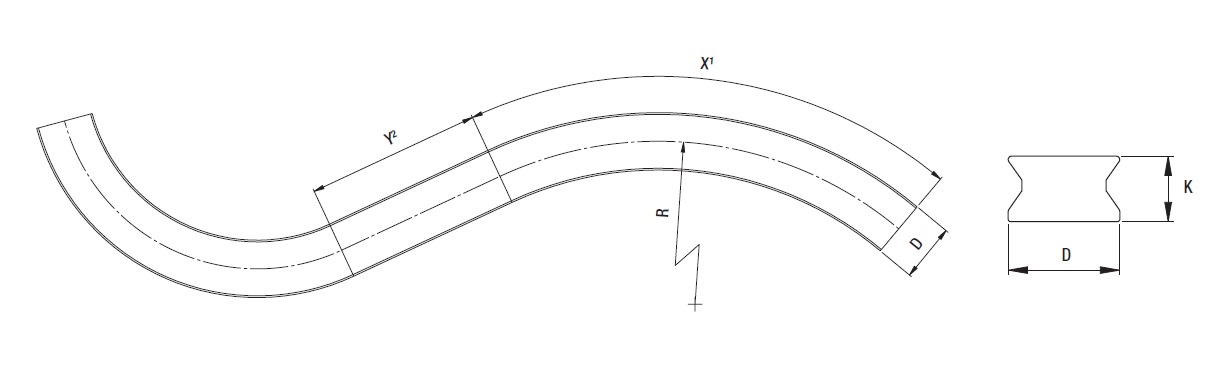

Variant Diagram
